20 Mic Gloss Hot Thermal Lamination Film Double Side Corona Treated High Transparency

20 Mic Gloss Hot Thermal Lamination Film Double Side Corona Treated High Transparency

  • 20 Mic Gloss Hot Thermal Lamination Film Double Side Corona Treated High Transparency
  • 20 Mic Gloss Hot Thermal Lamination Film Double Side Corona Treated High Transparency

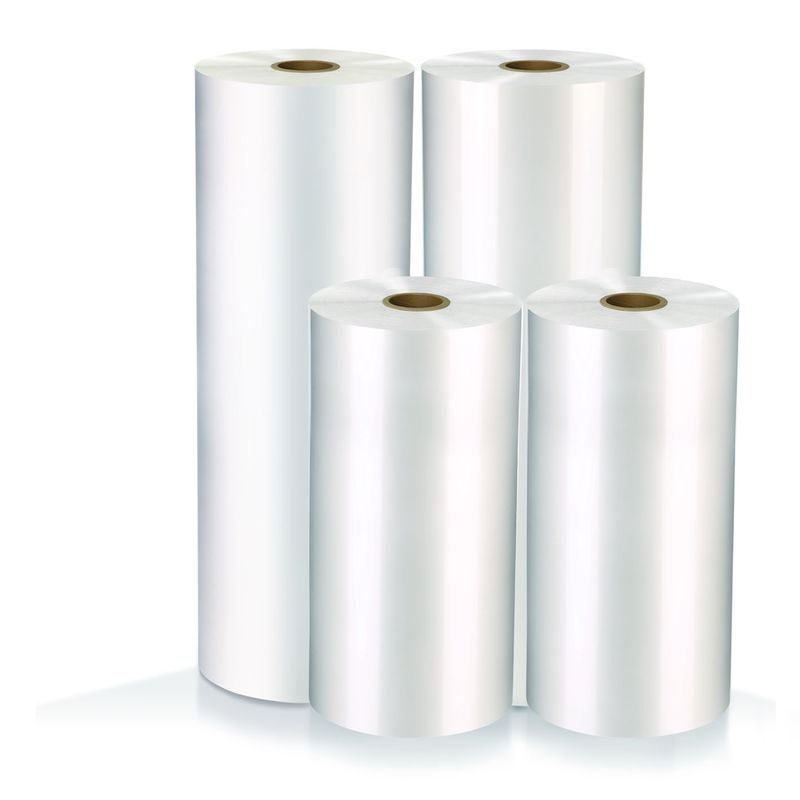

20 Mic Gloss Hot Thermal Lamination Film Double Side Corona Treated High Transparency
Product Details:
Place of Origin: GuangDong/China
Brand Name: NEI
Certification: SGS Test Report / ISO9001 / ISO14001
Model Number: Gloss
Payment & Shipping Terms:
Minimum Order Quantity: 1 Ton / Trail Order Negotiable
Price: Negotiable
Packaging Details: 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film.
Delivery Time: 15 -20 working days for one 20GP Container
Supply Ability: 1000 Tons per month
Contact Now
Detailed Product Description
Material: Bopp Film + Eva Application: Lamination For Paper Boards
Colour: White/pearl White
High Light:

Gloss Laminating Film

,

Glass Laminate Film

20mic gloss Lamination Film , coated film,plastic film, eva coated film,hot thermal lamination film



Gloss Bopp thermal lamination film

20 Mic Gloss Hot Thermal Lamination Film Double Side Corona Treated High Transparency 0

Specifications:

TYPE THICKNESS (micron)
MATTE TOTAL BASE EVA
17 12 5
18 12 6
20 12 8
22 12 10
23 15 8
25 15 10
27 15 12
30 15 15
43 28 15
WIDTH (mm) 200 ~ 2210
LENGTH (m) 100 ~ 8000
PAPER CORE 25.4mm(1 inch) / 76mm (3 inch)
BONDING ≤2
CORONA TREATED Double side
SURFACE TENSION 38 Dyne/cm ≤ 42 Dyne/cm
LAMINATION TEMP. 90±10°C
ROLLER PRESSURE 10 ~ 20Mpa
LAMINATION SPEED 20 ~ 70M



Description:

Thermal Lamination Films have extrusion-coated surface with low temperature melting resin, which enables the lamination of film to paper products by heat and pressure. Various surface finishes available add value to the printed surface. Matt BOPP thermal lamination film provides a matt-finish on the surface of presswork, protecting from fingerprints and smudges. Compared with gloss thermal lamination film, matt film can be preserved for longer period of time.

A combination of good performance characteristics and low price point make BOPP thermal laminating films ideal for all kinds of printed & unprinted paper and paper boards, including book covers, cosmetics packaging, magazines, documents, shopping bags, Diaries etc.

Why chooses BOPP thermal lamination film?

1. Environmentally friendly: It is non-toxic, odorless, or non-benzene because non-solvent based adhesive is used.

2. Safe operation: Non-solvent based adhesive is used so it will eliminate the fire hazard that is caused by the use and storage of flammable solvents.

3. Excellent performance: Compared with wet lamination, thermal lamination film enhances the color saturation and brightness of presswork. It also has stronger ability of absorbing powder and adhesive force. Furthermore, it is effective to prevent being blistered or separated from presswork in lamination process. As it has strong adhesive ability and surface tension, it can be used for latter processes, including spot UV, hot stamping, die cutting, indentation process.

4. Easy handling: Once the required temperature and pressure is met, lamination can be easily operated. No other special technique is required.

5. High efficiency: Production cost and labor cost are reduced substantially as there is no film wastage, mixture of adhesive solvent, or no UV heating lamp (drying system) is required. Therefore, it saves production space as well.

6. Wide adaptability: It is widely adaptable to different types of lamination machines, including wet and dry laminator.

Why chooses NEI?

· NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.

· 10 yeas of export experience to many countries, including South America, North America, Middle East, Asia, Africa, Oceania, etc. so we have good reputation in these areas.

· Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.

· Customize size and thickness according to customer requests. Labels can be customized as well.

· Rapid production and delivery.

· A wide range of thermal lamination film and special films.

20 Mic Gloss Hot Thermal Lamination Film Double Side Corona Treated High Transparency 1

Special Instruction:

· NEI matt BOPP thermal lamination film is suggested to be laminated with the roller temperature range of 85 to 110°C and roller pressure of 10 to 20 Mpa. However, the optimum conditions are depending on the selected laminator’s speed and dimensional stability.

· It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
