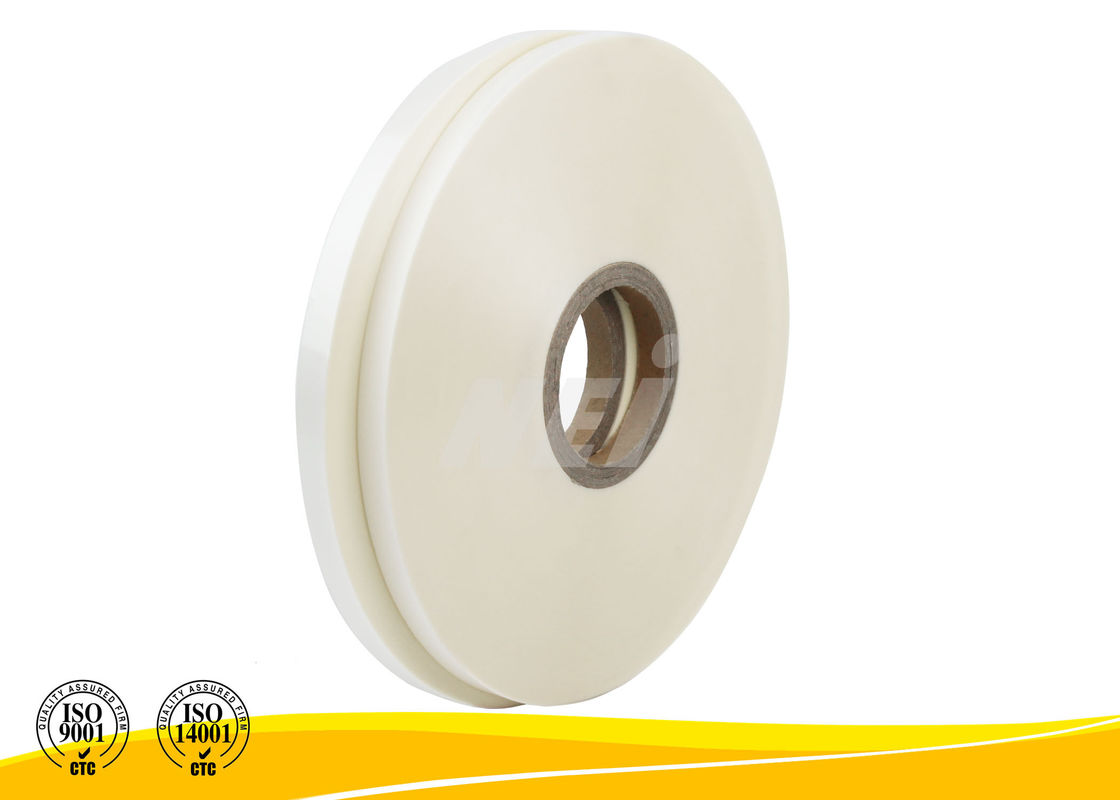

3 Inch 14MM High Glossy PET Thermal Lamination Film 22 Mic Thickness

3 Inch 14MM High Glossy PET Thermal Lamination Film 22 Mic Thickness

3 Inch 14MM High Glossy PET Thermal Lamination Film 22 Mic Thickness
3 Inch 14MM High Glossy PET Thermal Lamination Film 22 Mic Thickness
3 Inch 14MM High Glossy PET Thermal Lamination Film 22 Mic Thickness
Product Details:
Place of Origin: Guangdong, China
Brand Name: NEi
Certification: SGS Test Report / ISO9001 / ISO14001
Model Number: PET
Payment & Shipping Terms:
Minimum Order Quantity: 1 Ton / Trail Order Negotiable
Price: Negotiable
Packaging Details: 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film.
Delivery Time: 15 -20 working days for one 20GP Container
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Tons per month
Contact Now
Detailed Product Description
Product Name:: Glossy PET Thermal Lamination Film Type:: Thermal Lamination Film
Place Of Origin:: Guangdong, China Material:: 12 Micron PET + 10 Micron EVA
Processing Type:: Multiple Extrusion Transparency:: Transparent
Application:: Lamination On The Lefthand Sides Of Lecture Note Sheet Paper Core:: 3 Inch (1 Inch Available On Request)
Thickness:: 22 Micron
Highlight:

Mylar Polyester Film

,

Polyester Laminating Film

3 Inch 14MM High Glossy PET Thermal Lamination Film 22 Mic Thickness





Specifications:



TYPE

THICKNESS (micron)

GLOSSY

TOTAL

BASE

EVA

16

8

8

22

12

10

24

12

12

25

12

13

30

15

15

42

25

17

50

30

20

75

50

25

80

50

30

100

75

25

125

75

50

150

100

50

175

100

75

WIDTH (mm)

100 ~ 2220

LENGTH (m)

100 ~ 4000

PAPER CORE

25.4mm(1 inch) / 76mm (3 inch)

BONDING

≤2

CORONA TREATED

Double side

SURFACE TENSION

38 Dyne/cm ≤ 42 Dyne/cm

LAMINATION TEMP.

90 ± 10°C

ROLLER PRESSURE

10 ~ 20Mpa

LAMINATION SPEED

20 ~ 70M





Application:



Glossy PET Thermal Lamination Film has excellent clarity and processability on a wide range of machinery. Its surface has some certain level of scuff resistance and good stiffness, so it is widely for a variety of printed packaging and media, such as wine boxes, show trade display, photos and photo albums, etc. After lamination, the film surface is suitable for spot UV and screen printing.



Special Application:



22 micron PET thermal lamination film can be used to laminated on the lefthand sides of blank lecture note sheets in order to protect paper from damages or being tored. Blank lecture note sheets are widely used in oversea high shcools and universities.






Why chooses NEI PET thermal lamination film?



1. Environmentally friendly


2. Safe operation


3. Excellent performance


4. Easy handling


5. High efficiency


6. Wide adaptability






Why chooses NEI?



1. NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.



2. 10 yeas of export experience to many countries, including South America, North America, Middle East, Asia, Africa, Oceania, etc. so we have good reputation in these areas.



3. Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.



4. Customize size and thickness according to customer requests. Labels can be customized as well.



5. Rapid production and delivery.



6. A wide range of thermal lamination film and special films.






Special Instruction:



1. NEI glossy PET thermal lamination film is suggested to be laminated with the roller temperature range of 85 to 110°C and roller pressure of 10 to 20 Mpa. However, the optimum conditions are depending on the selected laminator’s speed and dimensional stability.



2. It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
