| Place of Origin: | Guangdong, China |
| Brand Name: | NEi |
| Certification: | SGS Test Report / ISO9001 / ISO14001 |
| Model Number: | PET |
| Minimum Order Quantity: | 1 Ton / Trail Order Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film. |
| Delivery Time: | 15 -20 working days for one 20GP Container |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 Tons per month |
| Product Name:: | Glossy PET Thermal Lamination Film | Type:: | Thermal Lamination Film |
|---|---|---|---|
| Place Of Origin:: | Guangdong, China | Material:: | 12 Micron PET + 10 Micron EVA |
| Processing Type:: | Multiple Extrusion | Transparency:: | Transparent |
| Application:: | Lamination For Wine Packaging | Paper Core:: | 3 Inch (1 Inch Available On Request) |
| Surface Finish:: | Glossy | ||
| Highlight: | Mylar Polyester Film,Polyester Laminating Film |
||

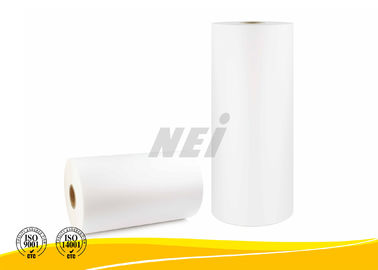

Wine Packaging PET Thermal Lamination Film Anti Scratch Environmentally Friendly
Specifications:
|
TYPE |
THICKNESS (micron) |
||
|
GLOSSY |
TOTAL |
BASE |
EVA |
|
16 |
8 |
8 |
|
|
22 |
12 |
10 |
|
|
24 |
12 |
12 |
|
|
25 |
12 |
13 |
|
|
30 |
15 |
15 |
|
|
42 |
25 |
17 |
|
|
50 |
30 |
20 |
|
|
75 |
50 |
25 |
|
|
80 |
50 |
30 |
|
|
100 |
75 |
25 |
|
|
125 |
75 |
50 |
|
|
150 |
100 |
50 |
|
|
175 |
100 |
75 |
|
|
WIDTH (mm) |
100 ~ 2220 |
||
|
LENGTH (m) |
100 ~ 4000 |
||
|
PAPER CORE |
25.4mm(1 inch) / 76mm (3 inch) |
||
|
BONDING |
≤2 |
||
|
CORONA TREATED |
Double side |
||
|
SURFACE TENSION |
38 Dyne/cm ≤ 42 Dyne/cm |
||
|
LAMINATION TEMP. |
90 ± 10°C |
||
|
ROLLER PRESSURE |
10 ~ 20Mpa |
||
|
LAMINATION SPEED |
20 ~ 70M |
||
Application:
Glossy PET Thermal Lamination Film has excellent clarity and processability on a wide range of machinery. Its surface has some certain level of scuff resistance and good stiffness, so it is widely for a variety of printed packaging and media, such as wine boxes, show trade display, photos and photo albums, etc. After lamination, the film surface is suitable for spot UV and screen printing.
Why chooses NEI PET thermal lamination film?
1. Environmentally friendly
2. Safe operation
3. Excellent performance
4. Easy handling
5. High efficiency
6. Wide adaptability
Why chooses NEI?
1. NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.
2. 10 yeas of export experience to many countries, including South America, North America, Middle East, Asia, Africa, Oceania, etc. so we have good reputation in these areas.
3. Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.
4. Customize size and thickness according to customer requests. Labels can be customized as well.
5. Rapid production and delivery.
6. A wide range of thermal lamination film and special films.
Special Instruction:
1. NEI glossy PET thermal lamination film is suggested to be laminated with the roller temperature range of 85 to 110°C and roller pressure of 10 to 20 Mpa. However, the optimum conditions are depending on the selected laminator’s speed and dimensional stability.
2. It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
