Moisture Proof Glass Laminate Film High Efficiency Strong Adhesiveness

Moisture Proof Glass Laminate Film High Efficiency Strong Adhesiveness

  • Moisture Proof Glass Laminate Film High Efficiency Strong Adhesiveness
  • Moisture Proof Glass Laminate Film High Efficiency Strong Adhesiveness
Moisture Proof Glass Laminate Film High Efficiency Strong Adhesiveness
Product Details:
Place of Origin: Guangdong, China
Brand Name: NEi
Certification: SGS Test Report / ISO9001 / ISO14001
Model Number: GLOSSY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Ton / Trail Order Negotiable
Price: Negotiable
Packaging Details: 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film.
Delivery Time: 15 -20 working days for one 20GP Container
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Tons per month
Contact Now
Detailed Product Description

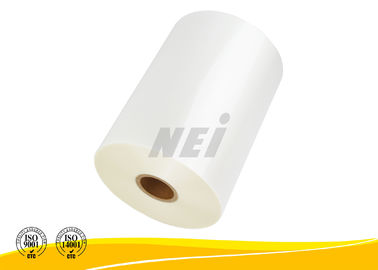

Product Name:: Glossy BOPP Thermal Lamination Film Type:: Thermal Lamination Film
Place Of Origin:: Guangdong, China Material:: 15 Micron BOPP+ 10 Micron EVA
Feature:: Moisture Proof Transparency:: Transparent
Application:: Lamination For Photo Albums Paper Core:: 3 Inch (1 Inch Available On Request)
Surface Finish: Glossy Thickness:: 25 Micron
Highlight:

Gloss Laminating Film

,

Glass Laminate Film



Moisture Proof Glass Laminate Film High Efficiency Strong Adhesiveness





Glossy Specifications:



TYPE

THICKNESS (micron)

GLOSSY

TOTAL

BASE

EVA

17

12

5

18

12

6

20

12

8

22

12

10

23

15

8

25

15

10

27

15

12

30

15

15

42

28

14

WIDTH (mm)

200 ~ 2210

LENGTH (m)

100 ~ 8000

PAPER CORE

25.4mm(1 inch) / 76mm (3 inch)

BONDING

≤2

CORONA TREATED

Double side

SURFACE TENSION

38 Dyne/cm ≤ 42 Dyne/cm

LAMINATION TEMP.

90±10°C

ROLLER PRESSURE

10 ~ 20Mpa

LAMINATION SPEED

20 ~ 70M





Description:



Thermal Lamination Films have extrusion-coated surface with low temperature melting resin, which enables the lamination of film to paper products by heat and pressure. Various surface finishes available add value to the printed surface. Glossy BOPP thermal lamination film offers a shiny colorful finish. Its use can enhance the look and increase all laminated presswork’s useful lifetime.



A combination of good performance characteristics and low price point make BOPP thermal laminating films ideal for all kinds of printed & unprinted paper and paper boards, including book covers, cosmetics packaging, magazines, documents, shopping bags, Diaries etc.





Application example:



Moisture Proof Glass Laminate Film High Efficiency Strong Adhesiveness 0






NEI BOPP thermal lamination film is widely used in the market because:



1. Environmentally friendly: non-toxic, odorless, or non-benzene because non-solvent based adhesive is used. It is environmentally friendly and non-hazardous to human health since no toxic gases or volatile content is emitted during lamination process. In addition, it is easier to recycle than water-based lamination film because film and paper can be easily separated.


2. Safe operation: Non-solvent based adhesive is used so it will eliminate the fire hazard that is caused by the use and storage of flammable solvents.


3. Excellent performance: Compared with wet lamination, thermal lamination film enhances the color saturation and brightness of presswork. It also has stronger ability of absorbing powder and adhesive force. Furthermore, it is effective to prevent being blistered or separated from presswork in lamination process. As it has strong adhesive ability and surface tension, it can be used for latter processes, including spot UV, hot stamping, die cutting, indentation process.


4. Easy handling: Once the required temperature and pressure is met, lamination can be easily operated. No other special technique is required.


5. High efficiency: Production cost and labor cost are reduced substantially as there is no film wastage, mixture of adhesive solvent, or no UV heating lamp (drying system) is required. Therefore, it saves production space as well.


6. Wide adaptability: It is widely adaptable to different types of lamination machines, including wet and dry laminator. Only small adjustments need to be made to the machine if wet laminator is used.






The brand NEI



1. NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.



2. 10 yeas of export experience to many countries, including South America, North America, Middle East, Asia, Africa, Oceania, etc. so we have good reputation in these areas.



3. Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.



4. Customize size and thickness according to customer requests. Labels can be customized as well.



5. Rapid production and delivery.



6. A wide range of thermal lamination film and special films.






Special Instruction:



1. NEI glossy BOPP thermal lamination film is suggested to be laminated with the roller temperature range of 85 to 110°C and roller pressure of 10 to 20 Mpa. However, the optimum conditions are depending on the selected laminator’s speed and dimensional stability.



2. It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
