High-Performance BOPP Thermal Lamination Film For Smooth And Durable Lamination

High-Performance BOPP Thermal Lamination Film For Smooth And Durable Lamination

  • High-Performance BOPP Thermal Lamination Film For Smooth And Durable Lamination
High-Performance BOPP Thermal Lamination Film For Smooth And Durable Lamination
Product Details:
Place of Origin: Guangdong, China
Brand Name: NEi
Certification: SGS Test Report / ISO9001 / ISO14001
Model Number: GLOSSY / MATTE
Payment & Shipping Terms:
Minimum Order Quantity: one pallet
Price: Negotiable

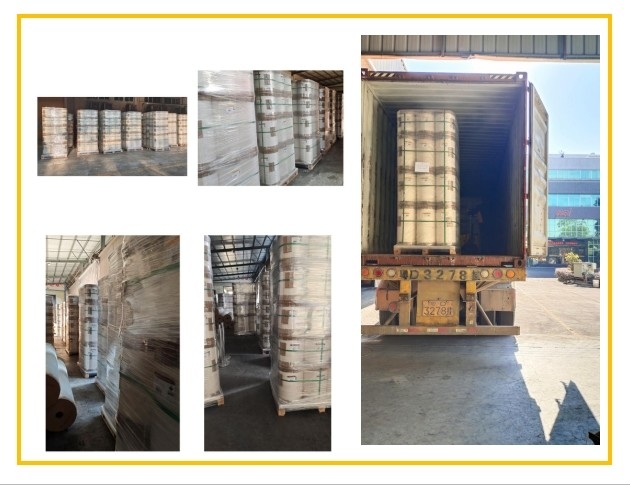

Packaging Details: 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film.
Delivery Time: 15 -20 working days for one 20GP Container
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Tons per month
Contact Now
Detailed Product Description
Product Name:: BOPP Thermal Lamination Film Type:: Thermal Lamination Film
Place Of Origin:: Guangdong, China Material:: 15 Micron BOPP+ 10 Micron EVA
Processing Type:: Multiple Extrusion Transparency:: Transparent
Application:: Lamination For Paper Boards Paper Core:: 3 Inch (1 Inch Available On Request)
Finish:: Glossy / Matte Thickness:: 25 Mic
Highlight:

Smooth BOPP Thermal Lamination Film

,

High Performance BOPP Thermal Lamination Film

,

Durable BOPP Thermal Lamination Film



BOPP Thermal Dry Erase Laminate Film Higher Adhesiveness Customize Sized





Glossy Specifications:



TYPE

THICKNESS (micron)

GLOSSY

TOTAL

BASE

EVA

17

12

5

18

12

6

20

12

8

22

12

10

23

15

8

25

15

10

27

15

12

30

15

15

42

28

14

WIDTH (mm)

200 ~ 2210

LENGTH (m)

100 ~ 8000

PAPER CORE

25.4mm(1 inch) / 76mm (3 inch)

BONDING

≤2

CORONA TREATED

Double side

SURFACE TENSION

38 Dyne/cm ≤ 42 Dyne/cm

LAMINATION TEMP.

90±10°C

ROLLER PRESSURE

10 ~ 20Mpa

LAMINATION SPEED

20 ~ 70M





Matte Specifications:



TYPE THICKNESS (micron)
MATTE TOTAL BASE EVA
17 12 5
18 12 6
20 12 8
22 12 10
23 15 8
25 15 10
27 15 12
30 15 15
43 28 15
WIDTH (mm) 200 ~ 2210
LENGTH (m) 100 ~ 8000
PAPER CORE 25.4mm(1 inch) / 76mm (3 inch)
BONDING ≤2
CORONA TREATED Double side
SURFACE TENSION 38 Dyne/cm ≤ 42 Dyne/cm
LAMINATION TEMP. 90±10°C
ROLLER PRESSURE 10 ~ 20Mpa
LAMINATION SPEED 20 ~ 70M





Description:



The surface of the thermolaminated film is coated with low-temperature molten resin extrusion, and the film can be laminated to the paper product by heat and pressure. A variety of surface treatments can add value to printed surfaces.



The glossy BOPP thermolaminated film provides a glossy colored finish. Its use can enhance the appearance and increase the service life of all laminated prints. Matte BOPP thermolaminate film provides a matte finish on print surfaces, preventing fingerprints and smudges. Matte films can be stored for a longer period of time than glossy thermolaminated films.



The 25 micron BOPP thermal composite film (the so-called thermal composite film, dry composite film) is widely used in the composite of various printed and unprinted papers and paperboards, including book covers, cosmetic packaging, magazines, documents, shopping bags, diaries, etc. It is commonly used in European countries, as well as some places where product packaging requires higher adhesion and brightness.






The advantages of NEI BOPP thermal lamination film



1. Environmentally friendly: It is non-toxic, odorless, or non-benzene because non-solvent based adhesive is used. It is environmentally friendly and non-hazardous to human health since no toxic gases or volatile content is emitted during lamination process. In addition, it is easier to recycle than water-based lamination film because film and paper can be easily separated.


2. Safe operation


3. Excellent performance: Compared with wet lamination, thermal lamination film enhances the color saturation and brightness of presswork. It also has stronger ability of absorbing powder and adhesive force. Furthermore, it is effective to prevent being blistered or separated from presswork in lamination process. As it has strong adhesive ability and surface tension, it can be used for latter processes, including spot UV, hot stamping, die cutting, indentation process.


4. Easy handling



5. High efficiency: Production cost and labor cost are reduced substantially as there is no film wastage, mixture of adhesive solvent, or no UV heating lamp (drying system) is required. Therefore, it saves production space as well.


6. Wide adaptability: It is widely adaptable to different types of lamination machines, including wet and dry laminator. Only small adjustments need to be made to the machine if wet laminator is used.






The Brand --- NEI



1. NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.



2. 10 yeas of export experience to many countries, including South America, North America, Middle East, Asia, Africa, Oceania, etc. so we have good reputation in these areas.



3. Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.



4. Customize size and thickness according to customer requests. Labels can be customized as well.



5. Rapid production and delivery.



6. A wide range of thermal lamination film and special films.






Special Instruction:



1. The recommended laminating roll temperature range for NE-BOPP thermolaminated films is 85 to 110°C and roll pressure is 10 to 20Mpa. However, the optimal conditions depend on the speed and dimensional stability of the laminator chosen.



2. It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
