Place of Origin: | Guangdong, China |
Brand Name: | NEi |
Certification: | SGS Test Report / ISO9001 / ISO14001 |
Model Number: | GLOSSY |
Minimum Order Quantity: | 1 TON |
---|---|
Price: | Negotiable |

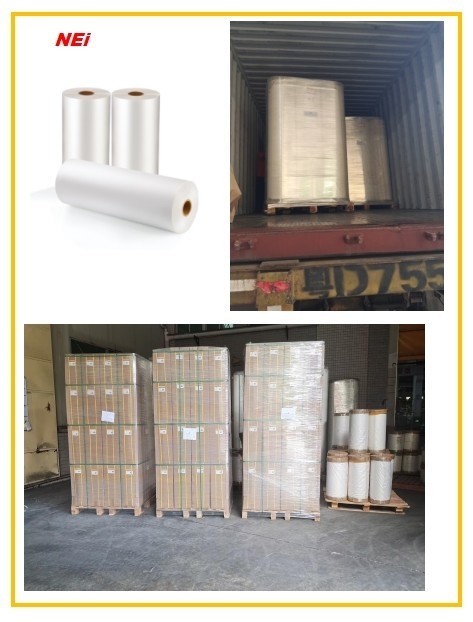

Packaging Details: | 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film. |
Delivery Time: | 15 -20 working days for one 20GP Container |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 1000 Tons per month |
Product Name:: | Glossy BOPP Thermal Lamination Film | Type:: | Thermal Lamination Film |
---|---|---|---|
Place Of Origin:: | Guangdong, China | Material:: | BOPP+EVA |
Processing Type:: | Multiple Extrusion | Transparency:: | Transparent |
Application:: | Lamination For Offset Printing Photos | Paper Core:: | 3 Inch (1 Inch Available On Request) |
Surface Finish: | Glossy | Thickness:: | 25 Mic |
Highlight: | Offset Printing Gloss Lamination Film,Various Surface Finishes Gloss Lamination Film,Photos Gloss Lamination Film |
Fashional Gloss Lamination Film Non-Toxic Odorless For Offset Printing Photos
Glossy Specifications:
TYPE |
THICKNESS (micron) |
||
GLOSSY |
TOTAL |
BASE |
EVA |
17 |
12 |
5 |
|
18 |
12 |
6 |
|
20 |
12 |
8 |
|
22 |
12 |
10 |
|
23 |
15 |
8 |
|
25 |
15 |
10 |
|
27 |
15 |
12 |
|
30 |
15 |
15 |
|
42 |
28 |
14 |
|
WIDTH (mm) |
200 ~ 2210 |
||
LENGTH (m) |
100 ~ 8000 |
||
PAPER CORE |
25.4mm(1 inch) / 76mm (3 inch) |
||
BONDING |
≤2 |
||
CORONA TREATED |
Double side |
||
SURFACE TENSION |
38 Dyne/cm ≤ 42 Dyne/cm |
||
LAMINATION TEMP. |
90±10°C |
||
ROLLER PRESSURE |
10 ~ 20Mpa |
||
LAMINATION SPEED |
20 ~ 70M |
Description:
The surface of the thermolaminated film is coated with low-temperature molten resin extrusion, and the film can be laminated to the paper product by heat and pressure. A variety of surface treatments can add value to printed surfaces.
The glossy BOPP thermolaminated film provides a glossy colored finish. Its use can enhance the appearance and increase the service life of all laminated prints. BOPP thermolaminated film with good performance and low price is ideal for all kinds of printed and unprinted paper and board, including book covers, cosmetic packaging, magazines, documents, shopping bags, diaries and more.
NEI BOPP thermal lamination film benefits!!!
1. Environmentally friendly: It is non-toxic, odorless or benzene-free because it uses a non-solvent-based adhesive. It is environmentally friendly and harmless to human health as no toxic gases or volatile components are emitted during the laminating process.
2. Safe operation: The use of non-solvent-based adhesives eliminates fire hazards caused by the use and storage of flammable solvents.
3. Excellent performance: Compared to wet laminating, thermal laminating film improves the color saturation and brightness of printed matter. It also has stronger powder absorption capacity and adhesion. In addition, it can effectively prevent foaming or separation from the stamping part during the lamination process. Due to its strong bonding ability and surface tension, it can be used in later processes, including point UV, hot stamping, die cutting, and indentation processes.
4. Easy to operate: Once the required temperature and pressure are reached, the lamination can be easily operated. No other special techniques are required.
5. High efficiency: Production costs and Labour costs are greatly reduced as there is no need for film waste, mixtures of adhesive solvents or UV heat lamps (drying systems). Therefore, it also saves production space.
6. Wide adaptability: Widely used in different types of laminating machines, including wet and dry laminating machines. If a wet laminator is used, only small adjustments to the machine are required.
Why chooses NEI?
1. NEI has professional experience in the film industry since 1995, so we have good quality control and after-sales service to support you.
2. 10 years of export experience, including South America, North America, the Middle East, Asia, Africa, Oceania and many other countries, so we have a good reputation in these fields.
3. Compared to other thermolaminated films, our EVA glue is 100% imported from Korea, ensuring the adhesion of our films.
4. Customized size and thickness according to customer requirements. Labels can also be customized.
5. Rapid production and delivery.
6. Wide range of thermolaminated films and special films.
Special Instruction:
1. It is recommended to use NEI BOPP gloss hot laminating film with roll temperature of 85 ~ 110°C and roll pressure of 10 ~ 20Mpa for laminating. However, the optimal conditions depend on the speed and dimensional stability of the laminator chosen.
2. It is recommended that the printed surface be sufficiently dry before laminating and that one surface be sufficiently cooled before laminating to another surface.
