| Place of Origin: | Guangdong, China |
| Brand Name: | NEi |
| Certification: | SGS Test Report / ISO9001 / ISO14001 |
| Model Number: | GLOSSY / MATTE |
| Minimum Order Quantity: | one pallet |
|---|---|
| Price: | Negotiable |

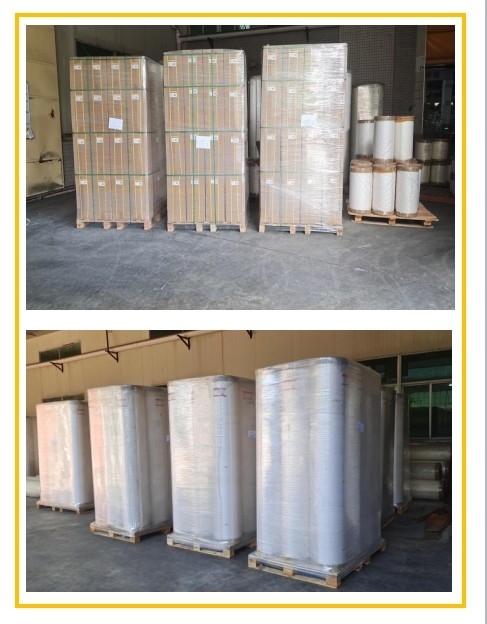

| Packaging Details: | 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film. |
| Delivery Time: | 15 -20 working days for one 20GP Container |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 Tons per month |
| Product Name:: | BOPP Thermal Lamination Film | Type:: | Thermal Lamination Film |
|---|---|---|---|
| Place Of Origin:: | Guangdong, China | Material:: | 15 Micron BOPP+ 12 Micron EVA |
| Processing Type:: | Multiple Extrusion | Transparency:: | Transparent |
| Application:: | Lamination For Paper Boards | Paper Core:: | 3 Inch (1 Inch Available On Request) |
| Finish:: | Glossy / Matte | Thickness:: | 27 Mic |
High Efficiency BOPP Heat Lamination Film Double Side Corona Treated
Glossy Specifications:
|
TYPE |
THICKNESS (micron) |
||
|
GLOSSY |
TOTAL |
BASE |
EVA |
|
17 |
12 |
5 |
|
|
18 |
12 |
6 |
|
|
20 |
12 |
8 |
|
|
22 |
12 |
10 |
|
|
23 |
15 |
8 |
|
|
25 |
15 |
10 |
|
|
27 |
15 |
12 |
|
|
30 |
15 |
15 |
|
|
42 |
28 |
14 |
|
|
WIDTH (mm) |
200 ~ 2210 |
||
|
LENGTH (m) |
100 ~ 8000 |
||
|
PAPER CORE |
25.4mm(1 inch) / 76mm (3 inch) |
||
|
BONDING |
≤2 |
||
|
CORONA TREATED |
Double side |
||
|
SURFACE TENSION |
38 Dyne/cm ≤ 42 Dyne/cm |
||
|
LAMINATION TEMP. |
90±10°C |
||
|
ROLLER PRESSURE |
10 ~ 20Mpa |
||
|
LAMINATION SPEED |
20 ~ 70M |
||
Matte Specifications:
| TYPE | THICKNESS (micron) | ||
| MATTE | TOTAL | BASE | EVA |
| 17 | 12 | 5 | |
| 18 | 12 | 6 | |
| 20 | 12 | 8 | |
| 22 | 12 | 10 | |
| 23 | 15 | 8 | |
| 25 | 15 | 10 | |
| 27 | 15 | 12 | |
| 30 | 15 | 15 | |
| 43 | 28 | 15 | |
| WIDTH (mm) | 200 ~ 2210 | ||
| LENGTH (m) | 100 ~ 8000 | ||
| PAPER CORE | 25.4mm(1 inch) / 76mm (3 inch) | ||
| BONDING | ≤2 | ||
| CORONA TREATED | Double side | ||
| SURFACE TENSION | 38 Dyne/cm ≤ 42 Dyne/cm | ||
| LAMINATION TEMP. | 90±10°C | ||
| ROLLER PRESSURE | 10 ~ 20Mpa | ||
| LAMINATION SPEED | 20 ~ 70M | ||
Description:
The surface of the thermolaminated film is coated with low-temperature molten resin extrusion, and the film can be laminated to the paper product by heat and pressure. A variety of surface treatments can add value to printed surfaces. The glossy BOPP thermolaminated film provides a glossy colored finish. Its use can enhance the appearance and increase the service life of all laminated prints. Matte BOPP thermolaminate film provides a matte finish on print surfaces, preventing fingerprints and smudges. Matte films can be stored for a longer period of time than glossy thermolaminated films. The 27 micron BOPP thermal composite film (the so-called thermal composite film, dry composite film) is widely used in the composite of various printed and unprinted papers and paperboards, including book covers, cosmetic packaging, magazines, documents, shopping bags, diaries, etc. It is widely used in European countries and some places with high requirements for adhesion and adhesion
The advantages of NEI BOPP thermal lamination film
1.Environmentally friendly: Due to the use of non solvent adhesives, it is non-toxic, odorless, or free of benzene. During the lamination process, no toxic gases or volatile substances are emitted, which is harmless to human health.
2. Safe operation
3. Excellent performance: Compared with wet lamination, thermal lamination film enhances the color saturation and brightness of presswork. It also has stronger ability of absorbing powder and adhesive force. Furthermore, it is effective to prevent being blistered or separated from presswork in lamination process.
4. Easy handling
5. High efficiency: Production cost, labor cost, and production space are all reduced.
6. Wide adaptability: It is widely adaptable to different types of lamination machines, including wet and dry laminator. Only small adjustments need to be made to the machine if wet laminator is used.
The Brand --- NEI
1. NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.
2. 10 yeas of export experience to many countries, including South America, North America, Middle East, Asia, Africa, Oceania, etc. so we have good reputation in these areas.
3. Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.
4. Customize size and thickness according to customer requests. Labels can be customized as well.
5. Rapid production and delivery.
6. A wide range of thermal lamination film and special films.
Special Instruction:
1. NEI BOPP thermal lamination film is suggested to be laminated with the roller temperature range of 85 to 110°C and roller pressure of 10 to 20 Mpa. However, the optimum conditions are depending on the selected laminator’s speed and dimensional stability.
2. It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
