Product Details:
Place of Origin: Guangdong, China
Brand Name: NEi
Certification: SGS Test Report / ISO9001 / ISO14001
Model Number: GLOSSY / MATTE
Payment & Shipping Terms:
Minimum Order Quantity: ONE TON
Price: Negotiable

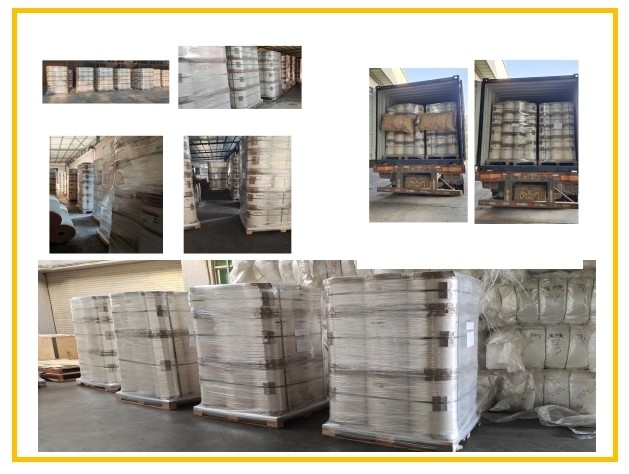

Packaging Details: 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film.
Delivery Time: 15 -20 working days for one 20GP Container
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Tons per month
Contact Now
Detailed Product Description
Product Name:: BOPP Thermal Lamination Film Type:: Thermal Lamination Film
Place Of Origin:: GUANGDONG,CHINA Material:: 15 Micron BOPP+ 12 Micron EVA
Processing Type:: Multiple Extrusion Transparency:: Transparent
Application:: Lamination For Paper Boards Paper Core:: 3 Inch (1 Inch Available On Request)
Finish:: Glossy / Matte Thickness:: 27 Micron
Highlight:

Double Side BOPP Thermal Lamination Film

,

Lamination Results BOPP Thermal Lamination Film



High Efficiency BOPP Heat Lamination Film Double Side Corona Treated





Glossy Specifications:



TYPE

THICKNESS (micron)

GLOSSY

TOTAL

BASE

EVA

17

12

5

18

12

6

20

12

8

22

12

10

23

15

8

25

15

10

27

15

12

30

15

15

42

28

14

WIDTH (mm)

200 ~ 2210

LENGTH (m)

100 ~ 8000

PAPER CORE

25.4mm(1 inch) / 76mm (3 inch)

BONDING

≤2

CORONA TREATED

Double side

SURFACE TENSION

38 Dyne/cm ≤ 42 Dyne/cm

LAMINATION TEMP.

90±10°C

ROLLER PRESSURE

10 ~ 20Mpa

LAMINATION SPEED

20 ~ 70M





Matte Specifications:



TYPE THICKNESS (micron)
MATTE TOTAL BASE EVA
17 12 5
18 12 6
20 12 8
22 12 10
23 15 8
25 15 10
27 15 12
30 15 15
43 28 15
WIDTH (mm) 200 ~ 2210
LENGTH (m) 100 ~ 8000
PAPER CORE 25.4mm(1 inch) / 76mm (3 inch)
BONDING ≤2
CORONA TREATED Double side
SURFACE TENSION 38 Dyne/cm ≤ 42 Dyne/cm
LAMINATION TEMP. 90±10°C
ROLLER PRESSURE 10 ~ 20Mpa
LAMINATION SPEED 20 ~ 70M





Description:



The surface of the thermolaminated film is coated with low-temperature molten resin extrusion, and the film can be laminated to the paper product by heat and pressure. A variety of surface treatments can add value to printed surfaces.



The glossy BOPP thermolaminated film provides a glossy colored finish. Its use can enhance the appearance and increase the service life of all laminated prints. Matte BOPP thermolaminate film provides a matte finish on print surfaces, preventing fingerprints and smudges. Matte films can be stored for a longer period of time than glossy thermolaminated films.



The 27 micron BOPP thermal composite film (the so-called thermal composite film, dry composite film) is widely used in the composite of various printed and unprinted papers and paperboards, including book covers, cosmetic packaging, magazines, documents, shopping bags, diaries, etc. It is commonly used in European countries, as well as some places where product packaging requires higher adhesion and brightness.






The advantages of NEI BOPP thermal lamination film



1. Environmentally friendly: It is non-toxic, odorless or benzene-free because it uses a non-solvent-based adhesive. It is environmentally friendly and harmless to human health as no toxic gases or volatile components are emitted during the laminating process.


2.Safe operation


3. Excellent performance: Compared to wet laminating, thermal laminating film improves the color saturation and brightness of printed matter. It also has stronger powder absorption capacity and adhesion. In addition, it can effectively prevent foaming or separation from the stamping part during the lamination process.


4. Easy handling



5.Efficiency: Production costs, labor costs, and production space are reduced.


6. Wide adaptability: Widely used in different types of laminating machines, including wet and dry laminating machines. If a wet laminator is used, only small adjustments to the machine are required.






The Brand --- NEI



1. NEI has professional experience in the film industry since 1995, so we have good quality control and after-sales service to support you.



2. 10 years of export experience, including South America, North America, the Middle East, Asia, Africa, Oceania and many other countries, so we have a good reputation in these fields.



3. Compared to other thermolaminated films, our EVA glue is 100% imported from Korea, ensuring the adhesion of our films.



4. Customized size and thickness according to customer requirements. Labels can also be customized.



5.Fast production and delivery.



6. Wide range of thermolaminated films and special films.






Special Instruction:



1. NEI BOPP thermal lamination film is suggested to be laminated with the roller temperature range of 85 to 110°C and roller pressure of 10 to 20 Mpa. However, the optimum conditions are depending on the selected laminator’s speed and dimensional stability.



2. It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
