| Place of Origin: | Guangdong, China |
| Brand Name: | NEi |
| Certification: | SGS Test Report / ISO9001 / ISO14001 |
| Model Number: | PET |
| Minimum Order Quantity: | 1000 sqm |
|---|---|
| Price: | Negotiable |

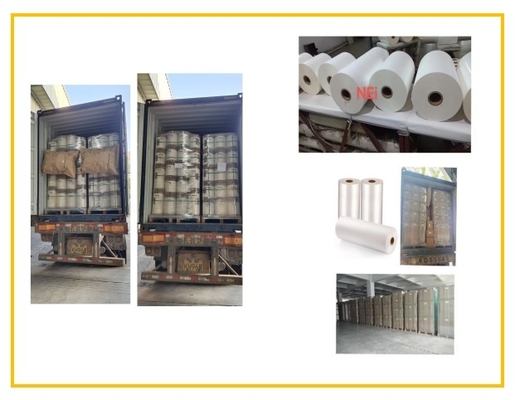

| Packaging Details: | 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film. |
| Delivery Time: | 15 -20 working days for one 20GP Container |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 Tons per month |
| Product Name:: | Glossy PET Thermal Lamination Film | Type:: | Thermal Lamination Film |
|---|---|---|---|
| Place Of Origin:: | Guangdong, China | Material:: | PET+EVA |
| Processing Type:: | Multiple Extrusion | Transparency:: | Transparent |
| Application:: | Lamination For Toy Packaging | Paper Core:: | 3 Inch (1 Inch Available On Request) |
| Surface Finish:: | Glossy | Length:: | 100M - 4000M |
| Highlight: | Glossy PET Thermal Lamination Film,Soft Touch PET Thermal Lamination Film |
||
Non Toxic Soft Touch Pet Mylar Film 100M - 4000M Length For Toy Packaging
Specifications:
|
TYPE |
THICKNESS (micron) |
||
|
GLOSSY |
TOTAL |
BASE |
EVA |
|
16 |
8 |
8 |
|
|
22 |
12 |
10 |
|
|
24 |
12 |
12 |
|
|
25 |
12 |
13 |
|
|
30 |
15 |
15 |
|
|
42 |
25 |
17 |
|
|
50 |
30 |
20 |
|
|
75 |
50 |
25 |
|
|
80 |
50 |
30 |
|
|
100 |
75 |
25 |
|
|
125 |
75 |
50 |
|
|
150 |
100 |
50 |
|
|
175 |
100 |
75 |
|
|
WIDTH (mm) |
100 ~ 2220 |
||
|
LENGTH (m) |
100 ~ 4000 |
||
|
PAPER CORE |
25.4mm(1 inch) / 76mm (3 inch) |
||
|
BONDING |
≤2 |
||
|
CORONA TREATED |
Double side |
||
|
SURFACE TENSION |
38 Dyne/cm ≤ 42 Dyne/cm |
||
|
LAMINATION TEMP. |
90 ± 10°C |
||
|
ROLLER PRESSURE |
10 ~ 20Mpa |
||
|
LAMINATION SPEED |
20 ~ 70M |
||
Application:
The glossy PET hot pressed film has excellent clarity and processability in various mechanical applications. Its surface has a certain degree of wear resistance and good stiffness, making it widely used in various printing, packaging, and media, such as wine boxes, exhibitions, trade displays, photos, and albums. The film surface after lamination is suitable for on-site UV and screen printing.
Why chooses NEI PET thermal lamination film?
1. Environmentally friendly: Due to the use of non solvent adhesives, it is non-toxic, odorless, or free of benzene. During the lamination process, no toxic gases or volatile substances are emitted, which is harmless to human health. In addition, it is easier to recover than water-based laminated membranes because the membrane and paper can be easily separated.
2. Safe operation
3. Excellent performance
4. Easy handling
5. High efficiency
6. Wide adaptability
Why chooses NEI?
1. Since 1995, NEI has had professional experience in the film industry, so we have good quality control and after-sales service to support you.
2. With 10 years of export experience, we have a good reputation in many countries, including South America, North America, the Middle East, Asia, Africa, Oceania, and so on.
3. Compared to other hot pressed films, our EVA adhesive is 100% imported from South Korea, ensuring the adhesion of the film.
4. We can customize the size and thickness according to customer requirements. Tags can also be customized.
5. Rapid production and delivery.
6. Widespread hot pressed film and special thin film.
Special Instruction:
1. It is recommended to use a composite process with a roller temperature of 85-110 ℃ and a roller pressure of 10-20 Mpa for the NEI smooth PET hot laminated film. However, the optimal conditions depend on the speed and dimensional stability of the selected laminating machine.
2. It is recommended to dry the printed surface thoroughly before laminating and cool one surface thoroughly before laminating onto other surfaces.
