| Place of Origin: | Guangdong, China |
| Brand Name: | NEi |
| Certification: | SGS Test Report / ISO9001 / ISO14001 |
| Model Number: | SCUFF FREE |
| Minimum Order Quantity: | 1000 SQM |
|---|---|
| Price: | Negotiable |

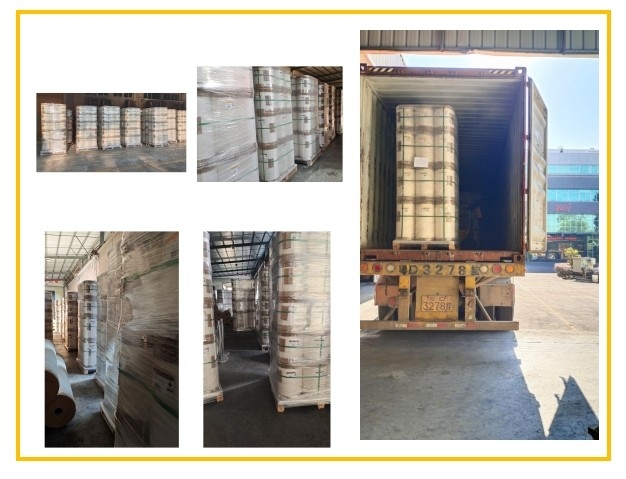

| Packaging Details: | 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film. |
| Delivery Time: | 15 -20 working days for one 20GP Container |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 Tons per month |
| Product Name:: | Matt Scuff Free Thermal Lamination Film | Type:: | Thermal Lamination Film |
|---|---|---|---|
| Place Of Origin:: | Guangdong, China | Material:: | BOPP+EVA |
| Processing Type:: | Multiple Extrusion | Transparency:: | Transparent |
| Application:: | Lamination For Luxury Packaging | Paper Core:: | 3 Inch (1 Inch Available Upon Request) |
| Surface Finish:: | Scuff Free | Hardness:: | SOFT |
| Highlight: | Corporate Brochures Anti Scratch Film,Extra Matt Look Anti Scratch Film |
||
Soft Touch Anti Scratch Film Double Side Corona Treated 100MM - 1570MM Width
Specifications:
| TYPE | THICKNESS (micron) | ||
| MATT | TOTAL | BASE | EVA |
| 35 | 20 | 15 | |
| WIDTH (mm) | 100 ~ 1570 | ||
| LENGTH (m) | 100m, 200m, 500m, 1000m, 2000m | ||
| PAPER CORE | 25.4mm(1 inch) / 76mm (3 inch) | ||
| BONDING | ≤2 | ||
| CORONA TREATED | Double side | ||
| SURFACE TENSION | 38 Dyne/cm ≤ 42 Dyne/cm | ||
| LAMINATION TEMP. | 90±10°C | ||
| ROLLER PRESSURE | 10 ~ 20Mpa | ||
| LAMINATION SPEED | 20 ~ 50M | ||
Description:
Wear free (anti wear) hot pressed film with surface coating, wear-resistant matte BOPP finish, and additional matte appearance. The matte surface has a high dyne level for coatings, hot stamping, and UC ink. It avoids the slight scratches that typically occur on the surface of a matte laminated film.
At present, it has been widely used in the custom packaging industry, as well as various high-quality customized graphic solutions for high-end book covers, hardcover books, book covers, corporate brochures, product brands, and more. It is an ideal luxury packaging that is excellent for any product that requires high wear resistance to increase value in printing.
The 1-inch scratch resistant laminated film mini roll is designed for fast printing shops, with laminated printing and small laminating machines. Normal sizes include 300mm, 330mm, 360mm, 400mm, 420mm, etc.
People also call it as anti-scratch film, scratch resistant film, scuff free film, anti-scuff film, etc.
Application:
Why chooses NEI matt scuff free thermal lamination film?
1. It's best to deepen the color. After lamination, there is no significant change in color tone, and the dark color is enhanced.
2. Environmentally friendly.
3. Safe operation: Non-solvent based adhesive is used so it will eliminate the fire hazard that is caused by the use and storage of flammable solvents.
4. Excellent performance: Compared with wet lamination, thermal lamination improves the color saturation and brightness of printed materials. Has strong powder absorption ability and adhesion. In addition, it can effectively prevent foaming or separation from the printed material during the lamination process. Due to its strong adhesive ability and surface tension, it can be used in subsequent processes, including spot UV, hot stamping, die-cutting, indentation, and other processes.
5.Easy to operate: Once the required temperature and pressure are reached, it can be easily operated. No other special techniques are required.
6. High efficiency: No waste of film, no mixing of adhesive solvents, no need for UV heating lamps (drying systems), greatly reducing production and labor costs. Therefore, it also saves production space.
7. Wide adaptability: widely applicable to different types of SMT machines, including wet and dry SMT machines. If using a wet laminating machine, only minor adjustments need to be made to the machine.
Why chooses NEI?
1. Since 1995, NEI has had professional experience in the film industry, so we have good quality control and after-sales service to support you.
2. With 10 years of export experience, we have a good reputation in many countries, including South America, North America, the Middle East, Asia, Africa, Oceania, and so on.
3. Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.
4. Customize size and thickness according to customer requests. Labels can be customized as well.
5. Rapid production and delivery.
6. A wide range of thermal lamination film and special films.
Special Instruction:
1. It is recommended to layer the NEI wear-resistant hot laminated film under roller temperature of 85-110 ℃ and roller pressure of 10-20 Mpa. However, the optimal conditions depend on the speed and dimensional stability of the selected laminating machine.
2. It is recommended that the printed surface be thoroughly dried before lamination and cooled thoroughly on one surface before laminating onto other surfaces. Not following these suggestions is likely to lead to premature stratification.
3. This film has an extra matt finish, so we recommend handling it with cotton gloves or at least with washed and cleaned bare hands.
