| Place of Origin: | Guangdong, China |
| Brand Name: | NEi |
| Certification: | SGS Test Report / ISO9001 / ISO14001 |
| Model Number: | PET |
| Minimum Order Quantity: | 1000 sqm |
|---|---|
| Price: | Negotiable |

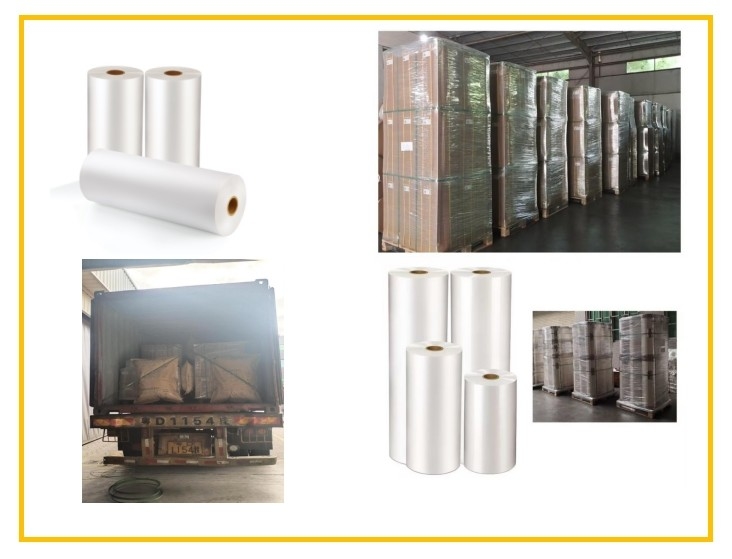

| Packaging Details: | 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film. |
| Delivery Time: | 15 -20 working days for one 20GP Container |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 Tons per month |
| Product Name:: | Glossy PET Thermal Lamination Film | Type:: | Thermal Lamination Film |
|---|---|---|---|
| Place Of Origin:: | Guangdong, China | Material:: | 12 Micron PET + 13 Micron EVA |
| Processing Type:: | Multiple Extrusion | Transparency:: | Transparent |
| Application:: | Lamination For PVC | Paper Core:: | 3 Inch (1 Inch Available On Request) |
| Surface Finish:: | Glossy | ||
| Highlight: | High Efficiency PET Thermal Lamination Film,Double Side PET Thermal Lamination Film |
||
High Efficiency PVC PET Thermal Lamination Film Double Side Corona Treated
Specifications:
|
TYPE |
THICKNESS (micron) |
||
|
GLOSSY |
TOTAL |
BASE |
EVA |
|
16 |
8 |
8 |
|
|
22 |
12 |
10 |
|
|
24 |
12 |
12 |
|
|
25 |
12 |
13 |
|
|
30 |
15 |
15 |
|
|
42 |
25 |
17 |
|
|
50 |
30 |
20 |
|
|
75 |
50 |
25 |
|
|
80 |
50 |
30 |
|
|
100 |
75 |
25 |
|
|
125 |
75 |
50 |
|
|
150 |
100 |
50 |
|
|
175 |
100 |
75 |
|
|
WIDTH (mm) |
100 ~ 2220 |
||
|
LENGTH (m) |
100 ~ 4000 |
||
|
PAPER CORE |
25.4mm(1 inch) / 76mm (3 inch) |
||
|
BONDING |
≤2 |
||
|
CORONA TREATED |
Double side |
||
|
SURFACE TENSION |
38 Dyne/cm ≤ 42 Dyne/cm |
||
|
LAMINATION TEMP. |
90 ± 10°C |
||
|
ROLLER PRESSURE |
10 ~ 20Mpa |
||
|
LAMINATION SPEED |
20 ~ 70M |
||
Application:
The glossy PET hot pressed film has excellent clarity and processability in various mechanical applications. Its surface has a certain degree of wear resistance and good stiffness, making it widely used in various printing, packaging, and media, such as wine boxes, exhibitions, trade displays, photos, and albums. The film surface after lamination is suitable for on-site UV and screen printing.
* Wine Boxes
* SHow Trade Display
* Photos
* PVC materials
* Corrugated cartons
Why chooses NEI PET thermal lamination film?
1. Environmentally friendly
2. Safe operation
3. Excellent performance
4. Easy handling
5. High efficiency
6. Wide adaptability
Why chooses NEI?
1. NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.
2. 10 yeas of export experience to many countries, including South America, North America, Middle East, Asia, Africa, Oceania, etc. so we have good reputation in these areas.
3. Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.
4. Customize size and thickness according to customer requests. Labels can be customized as well.
5. Rapid production and delivery.
6. A wide range of thermal lamination film and special films.
Special Instruction:
1.It is recommended to use a composite process with a roller temperature of 85-110 ℃ and a roller pressure of 10-20 Mpa for the NEI smooth PET hot laminated film. However, the optimal conditions depend on the speed and dimensional stability of the selected laminating machine.
2. It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
