BOPP Hot Lamination Film For Offset Printing Multiple Extrusion

BOPP Hot Lamination Film For Offset Printing Multiple Extrusion

BOPP Hot Lamination Film For Offset Printing Multiple Extrusion
BOPP Hot Lamination Film For Offset Printing Multiple Extrusion
BOPP Hot Lamination Film For Offset Printing Multiple Extrusion
Product Details:
Place of Origin: Guangdong, China
Brand Name: NEi
Certification: SGS Test Report / ISO9001 / ISO14001
Model Number: Matt
Payment & Shipping Terms:
Minimum Order Quantity: 1000 sqm
Price: Negotiable
Packaging Details: 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film.
Delivery Time: 15 -20 working days for one 20GP Container
Payment Terms: L/C, T/T
Supply Ability: 1000 Tons per month
Contact Now
Detailed Product Description
Product Name:: Matt Whiter BOPP Thermal Lamination Film Type:: Thermal Lamination Film
Brand Name:: NEI Place Of Origin:: Guangdong, China
Material:: BOPP+EVA Processing Type:: Multiple Extrusion
Transparency:: Transparent Application:: Lamination For Offset Printing
High Light:

BOPP Hot Lamination Film

,

Hot Lamination Film Offset Printing

,

Multiple Extrusion Matte Lamination Film

Matte Whiter BOPP THERMAL LAMINATION FILM

BOPP Hot Lamination Film For Offset Printing

Specifications:

TYPE THICKNESS (micron)
Gloss TOTAL BASE EVA
17 12 5
18 12 6
20 12 8
22 12 10
23 15 8
25 15 10
27 15 12
28 15 13
30 15 15
43 18 25
WIDTH (mm) 200 ~ 2210
LENGTH (m) 100 ~ 8000
PAPER CORE 25.4mm(1 inch) / 76mm (3 inch)
BONDING ≤2
CORONA TREATED Double side
SURFACE TENSION 38 Dyne/cm ≤ 42 Dyne/cm
LAMINATION TEMP. 90±10°C
ROLLER PRESSURE 10 ~ 20Mpa
LAMINATION SPEED 20 ~ 70M





Description:



The hot pressed composite film has an extruded coating surface of low-temperature molten resin, which allows the film to be laminated onto paper products through heat and pressure. Various surface treatments can increase the value of printed surfaces. Matte white BOPP hot press film provides a matte finish on the surface of printed materials. Compared to glossy hot pressed films, matte films can be stored for a longer period of time.

The excellent performance characteristics and low price make White BOPP hot press film an ideal choice for various printed and non printed paper and cardboard, including book covers, cosmetic packaging, magazines, documents, shopping bags, diaries, etc.



Why chooses NEI Whiter BOPP thermal lamination film?

  • 1. Environmentally friendly: Due to the use of non solvent adhesives, it is non-toxic, odorless, or free of benzene. During the lamination process, no toxic gases or volatile substances are emitted, which is harmless to human health. In addition, it is easier to recover than water-based laminated membranes because the membrane and paper can be easily separated.
  • 2. Operational safety: The use of non solvent adhesives eliminates fire hazards caused by the use and storage of flammable solvents.
  • 3. Excellent performance: Compared with wet bonding, hot bonding improves the color saturation and brightness of printing materials. Has strong powder absorption ability and adhesion. In addition, it can effectively prevent foaming or separation from the printed material during the lamination process. Due to its strong adhesive ability and surface tension, it can be used in subsequent processes, including spot UV, hot stamping, die-cutting, indentation, and other processes.
  • 4.Easy to operate: Once the required temperature and pressure are reached, it can be easily operated. No other special techniques are required.
  • 5. High efficiency: No waste of film, no mixing of adhesive solvents, no need for UV heating lamps (drying systems), greatly reducing production and labor costs. Therefore, it also saves production space.
  • 6. Wide adaptability: widely applicable to different types of SMT machines, including wet and dry SMT machines. If using a wet laminating machine, only minor adjustments need to be made to the machine.

BOPP Hot Lamination Film For Offset Printing Multiple Extrusion 0



Why chooses NEI?

  • Since 1995, NEI has had professional experience in film industry, so we have good quality control and after-sales service to support you.
  •  With 10 years of export experience, we have a good reputation in many countries, including South America, North America, the Middle East, Asia, Africa, Oceania, and so on.
  • Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.
  • Customize size and thickness according to customer requests. Labels can be customized as well.
  • Rapid production and delivery.
  • A wide range of thermal lamination film and special films.

Special Instruction:

  • The recommended composite roller temperature range for NEI Matt White BOPP hot press film is 85~110 ℃, and the roller press range is 10~20 Mpa. However, the optimal conditions depend on the speed and dimensional stability of the selected laminating machine.
  • It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.

Applications:



BOPP Hot Lamination Film For Offset Printing Multiple Extrusion 1

BOPP Hot Lamination Film For Offset Printing Multiple Extrusion 2

BOPP Hot Lamination Film For Offset Printing Multiple Extrusion 3

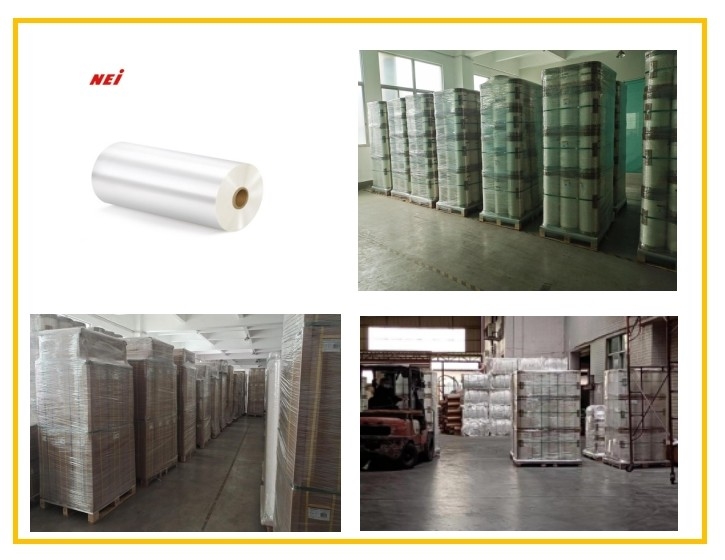

Packaging:



BOPP Hot Lamination Film For Offset Printing Multiple Extrusion 4
