| Place of Origin: | Guangdong, China |
| Brand Name: | NEi |
| Certification: | SGS Test Report / ISO9001 / ISO14001 |
| Model Number: | GLOSSY |
| Minimum Order Quantity: | one ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film. |
| Delivery Time: | 15 -20 working days for one 20GP Container |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 Tons per month |
| Product Name:: | Glossy BOPP Thermal Laminating Film | Type:: | Thermal Laminating Film |
|---|---|---|---|
| Place Of Origin:: | Guangdong, China | Material:: | BOPP+EVA |
| Processing Type:: | Multiple Extrusion | Transparency:: | Transparent |
| Application:: | Printing Protection | Paper Core:: | 1 Inch Or 3 Inch |
| Thickness:: | 17 - 42 Micron | ||
| Highlight: | High Speed Glossy Thermal Lamination Film,42 Micron Glossy Thermal Lamination Film |
||

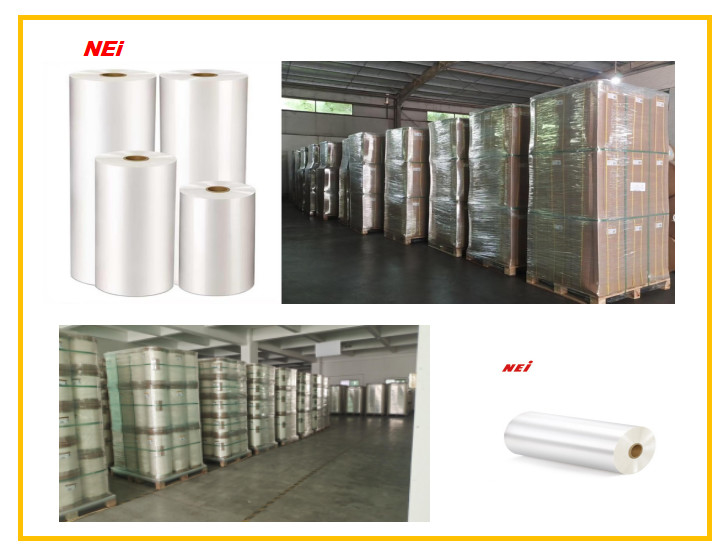

Multiple Extrusion Processing Gloss Laminating Film 17 - 42 Micron Thickness
High-Speed Glossy Thermal Lamination Film 17 - 42 Micron Thickness
Glossy Specifications:
TYPE | THICKNESS (micron) | ||
GLOSSY | TOTAL | BASE | EVA |
17 | 12 | 5 | |
18 | 12 | 6 | |
20 | 12 | 8 | |
22 | 12 | 10 | |
23 | 15 | 8 | |
25 | 15 | 10 | |
27 | 15 | 12 | |
30 | 15 | 15 | |
42 | 28 | 14 | |
WIDTH (mm) | 200 ~ 2210 | ||
LENGTH (m) | 100 ~ 8000 | ||
PAPER CORE | 25.4mm(1 inch) / 76mm (3 inch) | ||
BONDING | ≤2 | ||
CORONA TREATED | Double side | ||
SURFACE TENSION | 38 Dyne/cm ≤ 42 Dyne/cm | ||
LAMINATION TEMP. | 90±10°C | ||
ROLLER PRESSURE | 10 ~ 20Mpa | ||
LAMINATION SPEED | 20 ~ 70M | ||
Description:
The hot pressed composite film has an extruded coating surface of low-temperature molten resin, which is laminated onto paper products through hot pressing. Various surface treatments can increase the value of printed surfaces. The glossy BOPP hot press film provides a shiny colored finish. Its use can improve the appearance and extend the service life of all laminated printing materials.
BOPP hot press film has excellent performance characteristics and low price, making it an ideal choice for various printed and non printed paper and cardboard, including book covers, cosmetic packaging, magazines, documents, shopping bags, diaries, maps, etc.
The Advantages NEI BOPP thermal lamination film VS cold laminating film
NEI Quality Control
Special Instruction:
1. It is recommended to use a composite process with a roller temperature of 85-110 ℃ and a roller pressure of 10-20 Mpa for the NEI smooth BOPP hot press film. However, the optimal conditions depend on the speed and dimensional stability of the selected laminating machine.
2.It is recommended to dry the printed surface thoroughly before laminating and cool one surface thoroughly before laminating onto other surfaces.
