PET Angle Pasting Thermal Lamination Corner Tape | Double Sided Corona Treated | 90°C Lamination Temp.

PET Angle Pasting Thermal Lamination Corner Tape | Double Sided Corona Treated | 90°C Lamination Temp.

PET Angle Pasting Thermal Lamination Corner Tape | Double Sided Corona Treated | 90°C Lamination Temp.
PET Angle Pasting Thermal Lamination Corner Tape | Double Sided Corona Treated | 90°C Lamination Temp.
PET Angle Pasting Thermal Lamination Corner Tape | Double Sided Corona Treated | 90°C Lamination Temp.
Product Details:
Place of Origin: Guangdong, China
Brand Name: NEi
Certification: SGS Test Report / ISO9001 / ISO14001
Model Number: ANGLE PASTING
Payment & Shipping Terms:
Minimum Order Quantity: one ton
Price: Negotiable

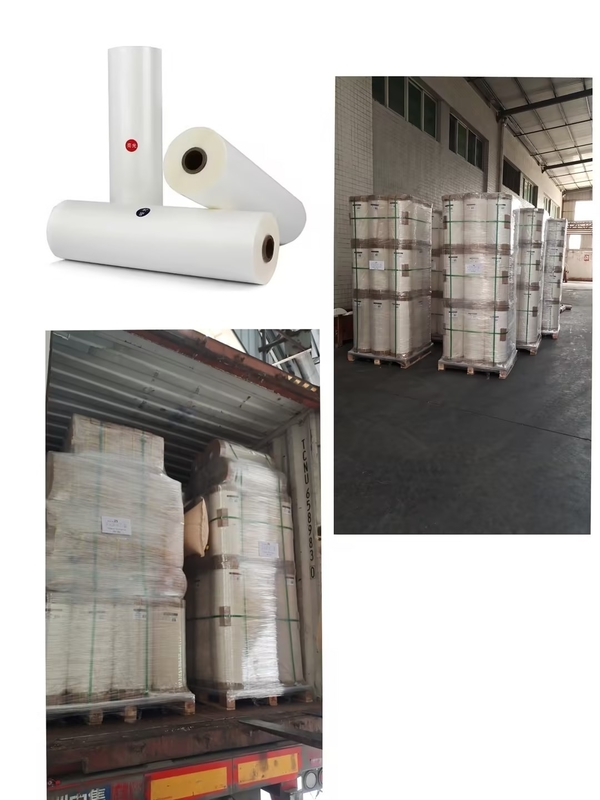

Packaging Details: 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film.
Delivery Time: 15 -20 working days for one 20GP Container
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Tons per month
Contact Now
Detailed Product Description
Product Name:: Angle Pasting Thermal Lamination Film Type:: Thermal Lamination Film
Place Of Origin:: Guangdong, China Material:: PET+EVA
Processing Type:: Multiple Extrusion Transparency:: Transparent
Application:: Lamination For Offset Printing Paper Core:: 3 Inch (1 Inch Available On Request)
Surface Finish:: Glossy



3 Inch Corner Tape Thermal Lamination Film 22 Micron 65 Micron 75 Micron



Specifications:



TYPE THICKNESS (micron)
GLOSSY TOTAL BASE EVA
22 12 10
65 38 27
75 50 25
WIDTH (mm) 14mm, 19mm, 25mm (Width can be customized)
LENGTH (m) 300 ~ 4000
PAPER CORE 25.4mm(1 inch) / 76mm (3 inch)
BONDING ≤2
CORONA TREATED Double side
SURFACE TENSION 38 Dyne/cm ≤ 42 Dyne/cm
LAMINATION TEMP. 90 ± 10°C
ROLLER PRESSURE 10 ~ 20Mpa
LAMINATION SPEED 20 ~ 70M





Description:



PET corner paste hot press film is specifically designed for box corner paste. Widely used in paper box corner making machines, replacing corner paper tape. Compared to paper tape, this angle adhesive film is waterproof and has stronger adhesion. Therefore, the service life of the cardboard box is longer.



PET Angle Pasting Thermal Lamination Corner Tape | Double Sided Corona Treated | 90°C Lamination Temp. 0





Why chooses NEI PET angle pasting thermal lamination film corner tape?



1. High temperature resistance, fast adhesion, and minimal waste.



2. Waterproof and stronger adhesive.



3. Environmentally friendly: Due to the use of non solvent adhesives, it is non-toxic, odorless, or free of benzene. During the lamination process, no toxic gases or volatile substances are emitted, which is harmless to human health. In addition, it is easier to recover than water-based laminated membranes because the membrane and paper can be easily separated.



4. Operational safety: The use of non solvent adhesives eliminates fire hazards caused by the use and storage of flammable solvents.



5. Excellent performance: Compared with wet lamination, thermal lamination improves the color saturation and brightness of printed materials. Has strong powder absorption ability and adhesion. In addition, it can effectively prevent foaming or separation from the printed material during the lamination process. Due to its strong adhesive ability and surface tension, it can be used in subsequent processes, including spot UV, hot stamping, die-cutting, indentation, and other processes.



6. Easy handling: Once the required temperature and pressure is met, lamination can be easily operated. No other special technique is required.



7. High efficiency: No waste of film, no mixing of adhesive solvents, no need for UV heating lamps (drying systems), greatly reducing production and labor costs. Therefore, it also saves production space.



8. Wide adaptability: widely applicable to different types of SMT machines, including wet and dry SMT machines. If using a wet laminating machine, only minor adjustments need to be made to the machine.







Why chooses NEI?



1. NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.



2. 10 yeas of export experience to many countries, including South America, North America, Middle East, Asia, Africa, Oceania, etc. so we have good reputation in these areas.



3. Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.



4. Customize size and thickness according to customer requests. Labels can be customized as well.



5. Rapid production and delivery.



6. A wide range of thermal lamination film and special films.





Special Instruction:



1. It is recommended to composite the NEI BOPP hot pressed film under roller temperature of 85-110 ℃ and roller pressure of 10-20 Mpa. However, the optimal conditions depend on the speed and dimensional stability of the selected laminating machine.



2. It is always used with corner making machines so width of corner tape can be customized.
