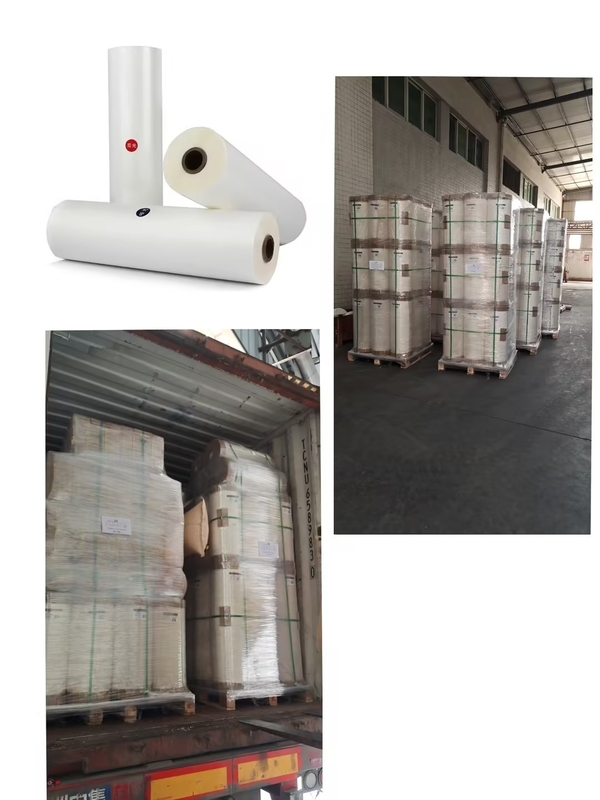

Customized size of high-performance glossy Pet film: 16 microns -200 microns

Customized size of high-performance glossy Pet film: 16 microns -200 microns

Customized size of high-performance glossy Pet film: 16 microns -200 microns
Customized size of high-performance glossy Pet film: 16 microns -200 microns
Customized size of high-performance glossy Pet film: 16 microns -200 microns
Product Details:
Place of Origin: Guangdong, China
Brand Name: NEi
Certification: SGS Test Report / ISO9001 / ISO14001
Model Number: PET
Payment & Shipping Terms:
Minimum Order Quantity: 1000 sqm
Price: Negotiable
Packaging Details: 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film.
Delivery Time: 15 -20 working days for one 20GP Container
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Tons per month
Contact Now
Detailed Product Description
Product Name:: Glossy PET Thermal Lamination Film Type:: Thermal Lamination Film
Place Of Origin:: Guangdong, China Material:: PET+EVA
Processing Type:: Multiple Extrusion Transparency:: Transparent
Application:: Lamination For Packaging Paper Core:: 3 Inch (1 Inch Available On Request)
Surface Finish:: Glossy



High Performance Gloss Pet Film Customize Sized 16 Micron – 200 Micron





Specifications:



TYPE

THICKNESS (micron)

GLOSSY

TOTAL

BASE

EVA

16

8

8

22

12

10

24

12

12

25

12

13

30

15

15

42

25

17

50

30

20

75

50

25

80

50

30

100

75

25

125

75

50

150

100

50

175

100

75

WIDTH (mm)

100 ~ 2220

LENGTH (m)

100 ~ 4000

PAPER CORE

25.4mm(1 inch) / 76mm (3 inch)

BONDING

≤2

CORONA TREATED

Double side

SURFACE TENSION

38 Dyne/cm ≤ 42 Dyne/cm

LAMINATION TEMP.

90 ± 10°C

ROLLER PRESSURE

10 ~ 20Mpa

LAMINATION SPEED

20 ~ 70M





Description:



The glossy PET hot pressed film has excellent clarity and processability in various mechanical applications. Its surface has a certain degree of wear resistance and good stiffness, making it widely used in various printing, packaging, and media, such as wine boxes, exhibitions, trade displays, photos, and albums. The film surface after lamination is suitable for on-site UV and screen printing.






Why chooses NEI PET thermal lamination film?



1. Environmentally friendly: Due to the use of non solvent adhesives, it is non-toxic, odorless, or free of benzene. During the lamination process, no toxic gases or volatile substances are emitted, which is harmless to human health. In addition, it is easier to recover than water-based laminated membranes because the membrane and paper can be easily separated.


2. Operational safety: The use of non solvent adhesives eliminates fire hazards caused by the use and storage of flammable solvents.
3. Excellent performance: Compared with wet lamination, thermal lamination improves the color saturation and brightness of printed materials. Has strong powder absorption ability and adhesion. In addition, it can effectively prevent foaming or separation from the printed material during the lamination process. Due to its strong adhesive ability and surface tension, it can be used in subsequent processes, including spot UV, hot stamping, die-cutting, indentation, and other processes.
4. Easy handling


5. High efficiency


6. Wide adaptability






Why chooses NEI?



1. Since 1995, NEI has had professional experience in the film industry, so we have good quality control and after-sales service to support you.



2. With 10 years of export experience, we have a good reputation in many countries, including South America, North America, the Middle East, Asia, Africa, Oceania, and so on.



3. Compared to other hot pressed films, our EVA adhesive is 100% imported from South Korea, ensuring the adhesion of the film.



4. Customize size and thickness according to customer requests. Labels can be customized as well.



5. Rapid production and delivery.



6. Widespread hot pressed film and special thin film.






Special Instruction:



1. It is recommended to use a composite process with a roller temperature of 85-110 ℃ and a roller pressure of 10-20 Mpa for the NEI smooth PET hot laminated film. However, the optimal conditions depend on the speed and dimensional stability of the selected laminating machine.



2. It is recommended to thoroughly dry the printed surface before laminating and thoroughly cool one surface before laminating onto other surfaces.
