1 Inch BOPP Temperature Sensitive Book Laminating Film Transparent Book Covering Film

1 Inch BOPP Temperature Sensitive Book Laminating Film Transparent Book Covering Film

  • 1 Inch BOPP Temperature Sensitive Book Laminating Film Transparent Book Covering Film
1 Inch BOPP Temperature Sensitive Book Laminating Film Transparent Book Covering Film
Product Details:
Place of Origin: Guangdong, China
Brand Name: NEi
Certification: SGS Test Report / ISO9001 / ISO14001
Model Number: GLOSSY / MATTE
Payment & Shipping Terms:
Minimum Order Quantity: 1000 SQM
Price: Negotiable

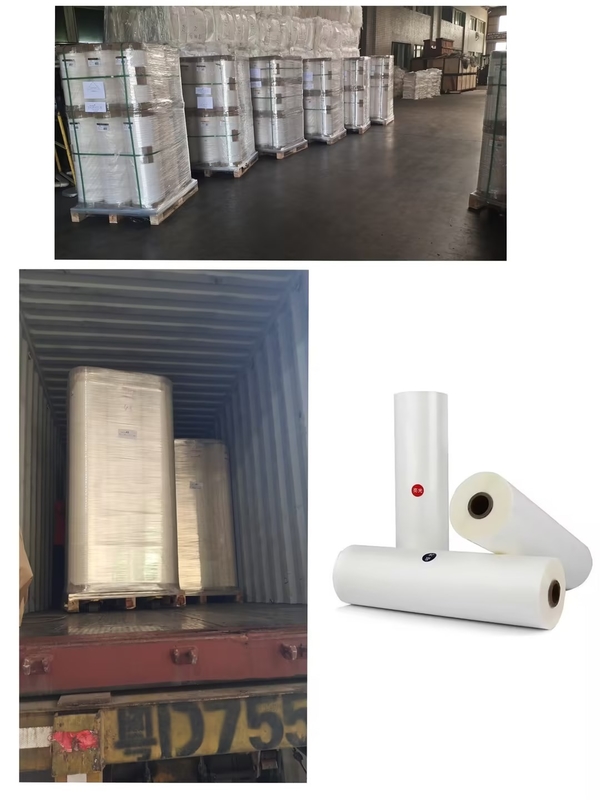

Packaging Details: 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film.
Delivery Time: 15 -20 working days for one 20GP Container
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Tons per month
Contact Now
Detailed Product Description
Product Name:: BOPP Thermal Lamination Film Type:: Thermal Lamination Film
Place Of Origin:: Guangdong, China Material:: Bopp+eva
Corona:: Double Side Hardness:: Soft
Application:: Lamination For Book Lamination Paper Core:: 1 Inch (3 Inch Available On Request)
Highlight:

1 Inch Book Laminating Film

,

BOPP Temperature Sensitive Book Laminating Film



1 Inch BOPP Thermal Book Laminating Film , Transparent Book Covering Film



1 Inch BOPP Temperature-Sensitive ; Book Laminating Film , Transparent Book Covering Film



Glossy Specifications:



TYPE

THICKNESS (micron)

GLOSSY

TOTAL

BASE

EVA

17

12

5

18

12

6

20

12

8

22

12

10

23

15

8

25

15

10

27

15

12

30

15

15

42

28

14

WIDTH (mm)

200 ~ 2210

LENGTH (m)

100 ~ 8000

PAPER CORE

25.4mm(1 inch) / 76mm (3 inch)

BONDING

≤2

CORONA TREATED

Double side

SURFACE TENSION

38 Dyne/cm ≤ 42 Dyne/cm

LAMINATION TEMP.

90±10°C

ROLLER PRESSURE

10 ~ 20Mpa

LAMINATION SPEED

20 ~ 70M





Matte Specifications:



TYPE THICKNESS (micron)
MATTE TOTAL BASE EVA
17 12 5
18 12 6
20 12 8
22 12 10
23 15 8
25 15 10
27 15 12
30 15 15
43 28 15
WIDTH (mm) 200 ~ 2210
LENGTH (m) 100 ~ 8000
PAPER CORE 25.4mm(1 inch) / 76mm (3 inch)
BONDING ≤2
CORONA TREATED Double side
SURFACE TENSION 38 Dyne/cm ≤ 42 Dyne/cm
LAMINATION TEMP. 90±10°C
ROLLER PRESSURE 10 ~ 20Mpa
LAMINATION SPEED 20 ~ 70M





Description:



The hot pressed composite film has an extruded coating surface of low-temperature molten resin, which allows the film to be laminated onto paper products through heat and pressure. Various surface treatments can increase the value of printed surfaces.



The glossy BOPP hot press film provides a shiny colored finish. Its use can improve the appearance and increase the lifespan of all laminated printed materials. Matte BOPP hot press film provides a matte finish on the surface of printed materials to prevent fingerprints and stains. Compared to glossy hot pressed films, matte films can be stored for a longer period of time.



BOPP hot press film has excellent performance characteristics and low price, making it an ideal choice for various printed and non printed paper and cardboard, including book covers, cosmetic packaging, magazines, documents, shopping bags, diaries, etc.





Why chooses NEI BOPP thermal laminating film for book lamination?



1. Environmentally friendly: Due to the use of non solvent adhesives, it is non-toxic, odorless, or free of benzene. During the lamination process, no toxic gases or volatile substances are emitted, which is harmless to human health. In addition, it is easier to recover than water-based laminated membranes because the membrane and paper can be easily separated.


2. Operational safety: The use of non solvent adhesives eliminates fire hazards caused by the use and storage of flammable solvents.


3. Excellent performance: Compared with wet lamination, thermal lamination improves the color saturation and brightness of printed materials. Has strong powder absorption ability and adhesion. In addition, it can effectively prevent foaming or separation from the printed material during the lamination process. Due to its strong adhesive ability and surface tension, it can be used in subsequent processes, including spot UV, hot stamping, die-cutting, indentation, and other processes.


4. Easy to operate: Once the required temperature and pressure are reached, it can be easily operated. No other special techniques are required.


5. High efficiency: No waste of film, no mixing of adhesive solvents, no need for UV heating lamps (drying systems), greatly reducing production and labor costs. Therefore, it also saves production space.


6. Wide adaptability: widely applicable to different types of SMT machines, including wet and dry SMT machines. If using a wet laminating machine, only minor adjustments need to be made to the machine.





Why chooses NEI?



1. Compared to other hot pressed films, our EVA adhesive is 100% imported from South Korea, ensuring the adhesion of the film.



2. We can customize the size and thickness according to customer requirements. Tags can also be customized.



3. Rapid production and delivery.



4. Widespread hot pressed film and special thin film.





Special Instruction:



1. It is recommended to composite the NEI BOPP hot pressed film under roller temperature of 85-110 ℃ and roller pressure of 10-20 Mpa. However, the optimal conditions depend on the speed and dimensional stability of the selected laminating machine.



2. It is recommended to dry the printed surface thoroughly before laminating and cool one surface thoroughly before laminating onto other surfaces.
