Product Details:
Place of Origin: Guangdong, China
Brand Name: NEi
Certification: SGS Test Report / ISO9001 / ISO14001
Model Number: GLOSSY
Payment & Shipping Terms:
Minimum Order Quantity: 1000 SQM
Price: Negotiable

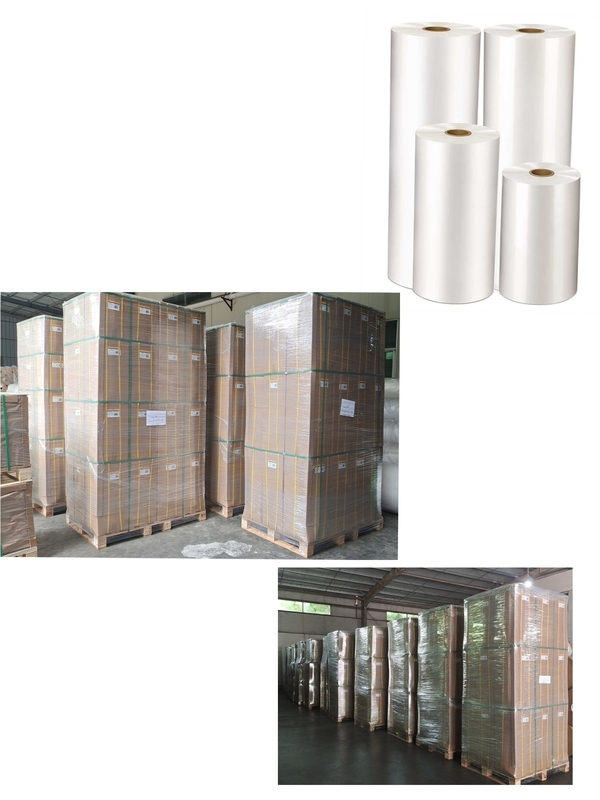

Packaging Details: 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film.
Delivery Time: 15 -20 working days for one 20GP Container
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Tons per month
Contact Now
Detailed Product Description
Product Name:: Glossy BOPP Thermal Lamination Film Type:: Thermal Lamination Film
Place Of Origin:: Guangdong, China Material:: BOPP+EVA
Processing Type:: Multiple Extrusion Transparency:: Transparent
Application:: Lamination For Offset Printing Paper Core:: 3 Inch (1 Inch Available On Request)
Surface Finish: Glossy



High Performance Gloss Lamination Film Multiple Extrusion Processing



Glossy Specifications:



TYPE

THICKNESS (micron)

GLOSSY

TOTAL

BASE

EVA

17

12

5

18

12

6

20

12

8

22

12

10

23

15

8

25

15

10

27

15

12

30

15

15

42

28

14

WIDTH (mm)

200 ~ 2210

LENGTH (m)

100 ~ 8000

PAPER CORE

25.4mm(1 inch) / 76mm (3 inch)

BONDING

≤2

CORONA TREATED

Double side

SURFACE TENSION

38 Dyne/cm ≤ 42 Dyne/cm

LAMINATION TEMP.

90±10°C

ROLLER PRESSURE

10 ~ 20Mpa

LAMINATION SPEED

20 ~ 70M





Description:



The hot pressed composite film has an extruded coating surface of low-temperature molten resin, which allows the film to be laminated onto paper products through heat and pressure. Various surface treatments can increase the value of printed surfaces. The glossy BOPP hot press film provides a shiny colored finish. Its use can improve the appearance and increase the lifespan of all laminated printed materials.



BOPP hot press film has excellent performance characteristics and low price, making it an ideal choice for various printed and non printed paper and cardboard, including book covers, cosmetic packaging, magazines, documents, shopping bags, diaries, etc.



Multiple Extrusion Processing of High Performance Glossy Lamination Film 0






Why chooses NEI BOPP thermal lamination film?



1.Environmentally friendly: Due to the use of non solvent adhesives, it is non-toxic, odorless, or free of benzene. During the lamination process, no toxic gases or volatile substances are emitted, which is harmless to human health. In addition, it is easier to recover than water-based laminated membranes because the membrane and paper can be easily separated.


2. Safe operation: Non-solvent based adhesive is used so it will eliminate the fire hazard that is caused by the use and storage of flammable solvents.


3. Excellent performance: Compared with wet lamination, thermal lamination improves the color saturation and brightness of printed materials. Has strong powder absorption ability and adhesion. In addition, it can effectively prevent foaming or separation from the printed material during the lamination process. Due to its strong adhesive ability and surface tension, it can be used in subsequent processes, including spot UV, hot stamping, die-cutting, indentation, and other processes.


4. Easy handling: Once the required temperature and pressure is met, lamination can be easily operated. No other special technique is required.


5. High efficiency: No waste of film, no mixing of adhesive solvents, no need for UV heating lamps (drying systems), greatly reducing production and labor costs. Therefore, it also saves production space.


6. Wide adaptability: It is widely adaptable to different types of lamination machines, including wet and dry laminator. Only small adjustments need to be made to the machine if wet laminator is used.






Why chooses NEI?



1. NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.



2. 10 yeas of export experience to many countries, including South America, North America, Middle East, Asia, Africa, Oceania, etc. so we have good reputation in these areas.



3. Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.



4. Customize size and thickness according to customer requests. Labels can be customized as well.



5. Rapid production and delivery.



6. A wide range of thermal lamination film and special films.






Special Instruction:



1. NEI glossy BOPP thermal lamination film is suggested to be laminated with the roller temperature range of 85 to 110°C and roller pressure of 10 to 20 Mpa. However, the optimum conditions are depending on the selected laminator’s speed and dimensional stability.



2. It is recommended to dry the printed surface thoroughly before laminating and cool one surface thoroughly before laminating onto other surfaces.
