Place of Origin: | Guangdong, China |
Brand Name: | NEi |
Certification: | SGS Test Report / ISO9001 / ISO14001 |
Model Number: | GLOSSY |
Minimum Order Quantity: | One Ton / Trail Order Negotiable |
---|---|
Price: | Negotiable |

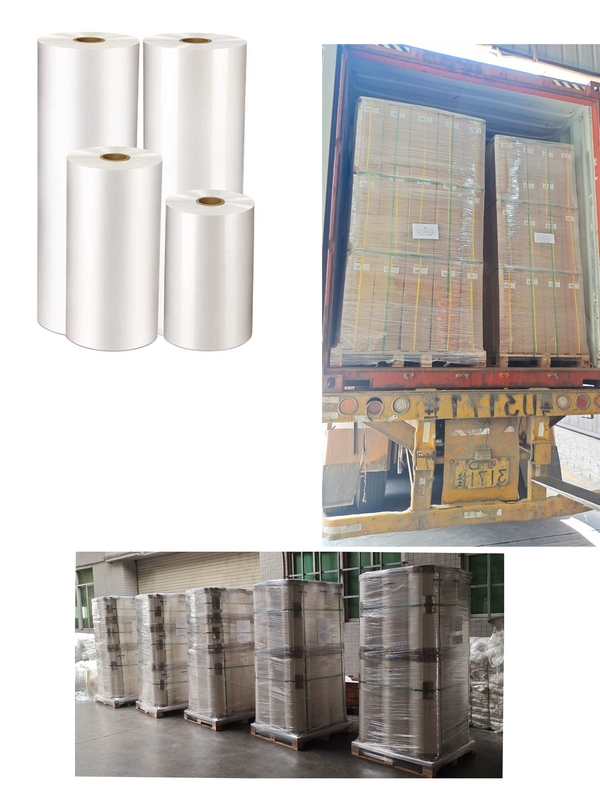

Packaging Details: | 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film. |
Delivery Time: | 15 -20 working days for one 20GP Container |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 1000 Tons per month |
Product Name:: | Glossy BOPP Thermal Lamination Film | Type:: | Pro-coating Film |
---|---|---|---|
Place Of Origin:: | Guangdong, China | Material:: | 12 Micron BOPP+ 6 Micron EVA |
Feature:: | Moisture Proof | Hardness:: | Soft |
Application:: | Lamination For Paper Media | Paper Core:: | 3 Inch (1 Inch Available On Request) |
Surface Finish: | Glossy | Thickness:: | 18 Mic |
Highlight: | Transparent Gloss Lamination Film,18 Mic Gloss Lamination Film,Gloss Lamination Film For Show Bags |
Pro Coating Transparent Gloss Lamination Film For Show Bags / Paper Media
18 mic Pro Coating Transparent Gloss Lamination Film For Show Bags / Paper Media
Glossy Specifications:
TYPE |
THICKNESS (micron) |
||
GLOSSY |
TOTAL |
BASE |
EVA |
17 |
12 |
5 |
|
18 |
12 |
6 |
|
20 |
12 |
8 |
|
22 |
12 |
10 |
|
23 |
15 |
8 |
|
25 |
15 |
10 |
|
27 |
15 |
12 |
|
30 |
15 |
15 |
|
42 |
28 |
14 |
|
WIDTH (mm) |
200 ~ 2210 |
||
LENGTH (m) |
100 ~ 8000 |
||
PAPER CORE |
25.4mm(1 inch) / 76mm (3 inch) |
||
BONDING |
≤2 |
||
CORONA TREATED |
Double side |
||
SURFACE TENSION |
38 Dyne/cm ≤ 42 Dyne/cm |
||
LAMINATION TEMP. |
90±10°C |
||
ROLLER PRESSURE |
10 ~ 20Mpa |
||
LAMINATION SPEED |
20 ~ 70M |
Description:
The hot pressed composite film has an extruded coating surface of low-temperature molten resin, which allows the film to be laminated onto paper products through heat and pressure. Various surface treatments can increase the value of printed surfaces. The glossy BOPP hot press film provides a shiny colored finish. Its use can improve the appearance and increase the lifespan of all laminated printed materials.
BOPP hot press film has excellent performance characteristics and low price, making it an ideal choice for various printed and non printed paper and cardboard, including book covers, cosmetic packaging, magazines, documents, shopping bags, diaries, etc.
Thermal lamination film is also called HOT LAMINATION FILM, HOT LAMINATING FILM, THERMAL LAMINATING FILM, and PRO-COATING FILM.
Application example:
NEI BOPP thermal lamination film is widely used in the market because:
1. Environmentally friendly: Due to the use of non solvent adhesives, it is non-toxic, odorless, or free of benzene. During the lamination process, no toxic gases or volatile substances are emitted, which is harmless to human health.
2. Safe operation: Non-solvent based adhesive is used so it will eliminate the fire hazard that is caused by the use and storage of flammable solvents.
3.Excellent performance: Compared with wet lamination, thermal lamination improves the color saturation and brightness of printed materials. Has strong powder absorption ability and adhesion. In addition, it can effectively prevent foaming or separation from the printed material during the lamination process.
4. Easy handling: Once the required temperature and pressure is met, lamination can be easily operated. No other special technique is required.
5. High efficiency: No waste of film, no mixing of adhesive solvents, no need for UV heating lamps (drying systems), greatly reducing production and labor costs. Therefore, it also saves production space.
6. Wide adaptability: It is widely adaptable to different types of lamination machines, including wet and dry laminator. Only small adjustments need to be made to the machine if wet laminator is used.
The brand NEI
1. NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.
2. With 10 years of export experience, we have a good reputation in many countries, including South America, North America, the Middle East, Asia, Africa, Oceania, and so on.
3. Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.
4. Customize size and thickness according to customer requests. Labels can be customized as well.
5. Rapid production and delivery.
6. A wide range of thermal lamination film and special films.
Special Instruction:
1. It is recommended to use a composite process with a roller temperature of 85-110 ℃ and a roller pressure of 10-20 Mpa for the NEI smooth BOPP hot press film. However, the optimal conditions depend on the speed and dimensional stability of the selected laminating machine.
2. It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
