| Place of Origin: | GuangDong/China |
| Brand Name: | NEI |
| Certification: | SGS Test Report / ISO9001 / ISO14001 |
| Model Number: | MATT |
| Minimum Order Quantity: | 1000 SQM |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film. |
| Delivery Time: | 15 -20 working days for one 20GP Container |
| Supply Ability: | 1000 Tons per month |
| Material: | BOPP FILM+EVA | Application: | Lamination For Paper Boards |
|---|---|---|---|
| Highlight: | Matt BOPP Thermal Lamination Film,2210mm Width Thermal Lamination Film,20Micron Thermal Lamination Film |
||

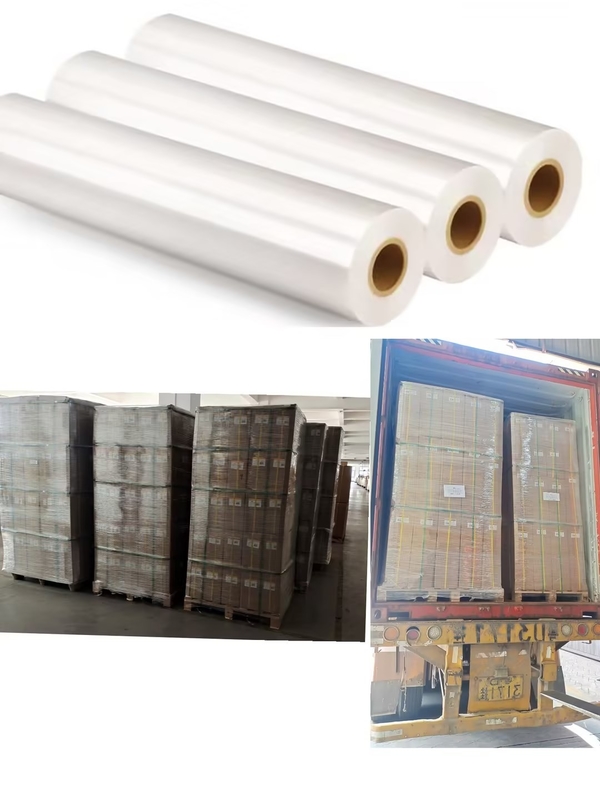

Matt BOPP Thermal Lamination Film, 20-Micron Total, 200-2210mm Width
Matt Bopp thermal lamination film
Specifications:
| TYPE | THICKNESS (micron) | ||
| MATTE | TOTAL | BASE | EVA |
| 17 | 12 | 5 | |
| 18 | 12 | 6 | |
| 20 | 12 | 8 | |
| 22 | 12 | 10 | |
| 23 | 15 | 8 | |
| 25 | 15 | 10 | |
| 27 | 15 | 12 | |
| 30 | 15 | 15 | |
| 43 | 28 | 15 | |
| WIDTH (mm) | 200 ~ 2210 | ||
| LENGTH (m) | 100 ~ 8000 | ||
| PAPER CORE | 25.4mm(1 inch) / 76mm (3 inch) | ||
| BONDING | ≤2 | ||
| CORONA TREATED | Double side | ||
| SURFACE TENSION | 38 Dyne/cm ≤ 42 Dyne/cm | ||
| LAMINATION TEMP. | 90±10°C | ||
| ROLLER PRESSURE | 10 ~ 20Mpa | ||
| LAMINATION SPEED | 20 ~ 70M | ||
Description:
The hot pressed composite film has an extruded coating surface of low-temperature molten resin, which allows the film to be laminated onto paper products through heat and pressure. Various surface treatments can increase the value of printed surfaces. Matte BOPP hot press film provides a matte finish on the surface of printed materials to prevent fingerprints and stains. Compared to glossy hot pressed films, matte films can be stored for a longer period of time.
BOPP hot press film has excellent performance characteristics and low price, making it an ideal choice for various printed and non printed paper and cardboard, including book covers, cosmetic packaging, magazines, documents, shopping bags, diaries, etc.
Why chooses BOPP thermal lamination film?
1. Environmentally friendly: It is non-toxic, odorless, or non-benzene because non-solvent based adhesive is used.
2. Safe operation: Non-solvent based adhesive is used so it will eliminate the fire hazard that is caused by the use and storage of flammable solvents.
3.Excellent performance: Compared with wet lamination, thermal lamination film enhances the color saturation and brightness of presswork. It also has stronger ability of absorbing powder and adhesive force. Furthermore, it is effective to prevent being blistered or separated from presswork in lamination process. As it has strong adhesive ability and surface tension, it can be used for latter processes, including spot UV, hot stamping, die cutting, indentation process.
4. Easy handling: Once the required temperature and pressure is met, lamination can be easily operated. No other special technique is required.
5. High efficiency: Production cost and labor cost are reduced substantially as there is no film wastage, mixture of adhesive solvent, or no UV heating lamp (drying system) is required. Therefore, it saves production space as well.
6. Wide adaptability: It is widely adaptable to different types of lamination machines, including wet and dry laminator.
Why chooses NEI?
· NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.
· 10 yeas of export experience to many countries, including South America, North America, Middle East, Asia, Africa, Oceania, etc. so we have good reputation in these areas.
· Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.
· Customize size and thickness according to customer requests. Labels can be customized as well.
· Rapid production and delivery.
· A wide range of thermal lamination film and special films.
Special Instruction:
· It is recommended to composite the NEI matte BOPP hot pressed film under roller temperature of 85-110 ℃ and roller pressure of 10-20 Mpa. However, the optimal conditions depend on the speed and dimensional stability of the selected laminating machine.
· It is recommended to dry the printed surface thoroughly before laminating and cool one surface thoroughly before laminating onto other surfaces.
