Place of Origin: | Guangdong, China |
Brand Name: | NEi |
Certification: | SGS Test Report / ISO9001 / ISO14001 |
Model Number: | MATTE |
Minimum Order Quantity: | 1 Ton / Trail Order Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film. |
Delivery Time: | 15 -20 working days for one 20GP Container |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 1000 Tons per month |
Product Name:: | Matte BOPP Thermal Lamination Film | Material:: | 12 Micron BOPP + 10 Micron EVA |
---|---|---|---|
Transparency:: | Transparent | Application:: | Lamination For Paper Lamination |
Paper Core:: | 3 Inch (1 Inch Available On Request) | Finish:: | Matte |
Hardness:: | Soft | ||
Highlight: | Matte Thermal Laminating Film,Soft Touch Matte Thermal Laminating Film,3 Inch Matte Lamination Film |

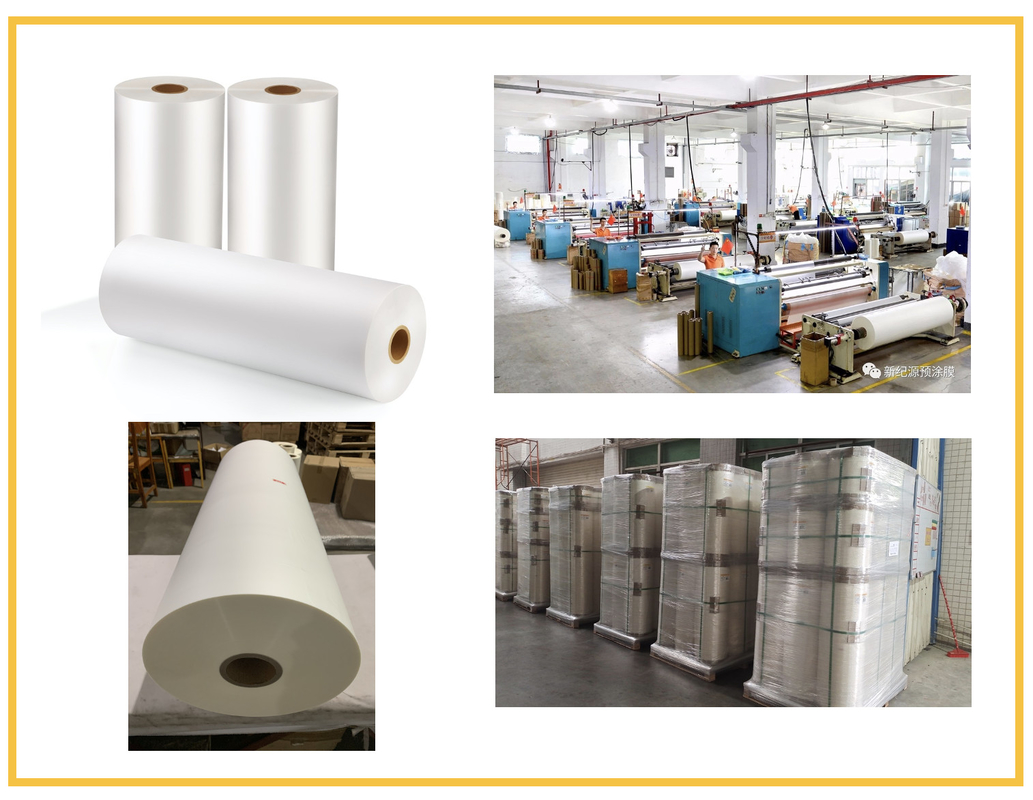

Soft Soft Touch Matte Thermal Laminating Film Multiple Extrusion Processing
Matte Specifications:
TYPE | THICKNESS (micron) | ||
MATTE | TOTAL | BASE | EVA |
17 | 12 | 5 | |
18 | 12 | 6 | |
20 | 12 | 8 | |
22 | 12 | 10 | |
23 | 15 | 8 | |
25 | 15 | 10 | |
27 | 15 | 12 | |
30 | 15 | 15 | |
43 | 28 | 15 | |
WIDTH (mm) | 200 ~ 2210 | ||
LENGTH (m) | 100 ~ 8000 | ||
PAPER CORE | 25.4mm(1 inch) / 76mm (3 inch) | ||
BONDING | ≤2 | ||
CORONA TREATED | Double side | ||
SURFACE TENSION | 38 Dyne/cm ≤ 42 Dyne/cm | ||
LAMINATION TEMP. | 90±10°C | ||
ROLLER PRESSURE | 10 ~ 20Mpa | ||
LAMINATION SPEED | 20 ~ 70M |
Description:
Thermolaminated films have an extruded coating surface of a low temperature molten resin, which enables the lamination of the film onto the paper product by heat and pressure. The variety of finishes available add value to printed surfaces. Matte BOPP thermal laminate film provides a matte finish on the printed surface, preventing fingerprints and smudges. Matte films can last longer than glossy hot laminate films.
The excellent performance characteristics and low price make BOPP thermolaminate film ideal for all kinds of printed and unprinted paper and board, including book covers, cosmetic packaging, magazines, documents, shopping bags, diaries and more.
Applications of BOPP thermal laminating films
* Cell Phone Packaging
* Textbook covers
* Price Tags
* Labels
* Brochures
* Leaflets
* Sweet boxes
* Cosmetics
* Photo albums
* Shopping bags
* Diaries
The advantages of NEI BOPP thermal lamination film
1. Environmentally friendly: It is non-toxic, odorless, or non-benzene because non-solvent based adhesive is used. It is environmentally friendly and non-hazardous to human health since no toxic gases or volatile content is emitted during lamination process.
2. Safe operation
3. Excellent performance: Compared with wet lamination, thermal lamination film enhances the color saturation and brightness of presswork. It also has stronger ability of absorbing powder and adhesive force. Furthermore, it is effective to prevent being blistered or separated from presswork in lamination process.
4. Easy handling
5. High efficiency: Since there is no need for film waste, mixtures of adhesive solvents or UV heating lamps (drying systems), production costs and labor costs are significantly reduced. Therefore, it also saves production space.
6. Wide adaptability: It is widely used in different types of laminators, including wet and dry laminators. If a wet laminator is used, only minor adjustments to the machine are required.
Why chooses NEI?
1. NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.
2. 20 years of export experience, including South America, North America, Middle East, Asia, Africa, Oceania, etc., so we enjoy a good reputation in these fields.
3. Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.
4. Customized size and thickness according to customer requirements. Labels can also be customized.
5. Rapid production and delivery.
Special Instruction:
1. NEI glossy BOPP thermal lamination film is suggested to be laminated with the roller temperature range of 85 to 110°C and roller pressure of 10 to 20 Mpa. However, the optimum conditions are depending on the selected laminator’s speed and dimensional stability.
2. It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
