| Place of Origin: | China |
| Brand Name: | NEi |
| Certification: | ISO9001 / ISO14001 /SGS Test Report |
| Model Number: | Matte |
| Minimum Order Quantity: | 1 Ton / Trail Order Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film. |
| Delivery Time: | 15 -20 working days for one 20GP Container |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 Tons per month |
| Product Name:: | BOPP Thermal Lamination Film | Type:: | Thermal Lamination Film |
|---|---|---|---|
| Brand Name:: | NEI | Material:: | BOPP+EVA |
| Transparency:: | Transparent | Application:: | Lamination For Offset Printing |
| Highlight: | Transparent BOPP Thermal Lamination Film,43mic Thermal Lamination Film,15mic Matte Lamination Film |
||

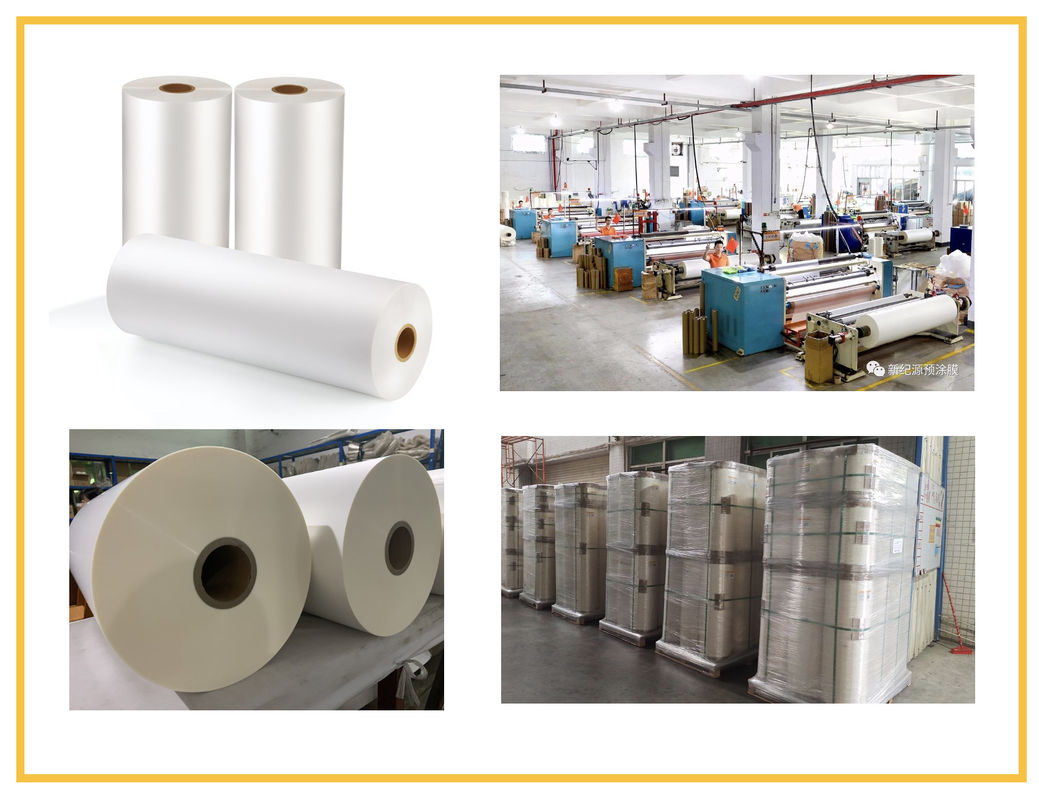

Glossy and Matte Transparent BOPP Thermal Lamination Film With Glue 15mic to 43mic
Specifications:
| TYPE | THICKNESS (micron) | ||
| Matt | TOTAL | FILM BASE | EVA GLUE |
| 17 | 12 | 5 | |
| 18 | 12 | 6 | |
| 20 | 12 | 8 | |
| 22 | 12 | 10 | |
| 23 | 15 | 8 | |
| 25 | 15 | 10 | |
| 27 | 15 | 12 | |
| 28 | 15 | 13 | |
| 30 | 15 | 15 | |
| 43 | 18 | 25 | |
| WIDTH (mm) | 200 ~ 2200 | ||
| LENGTH (m) | 100 ~ 5000 | ||
| PAPER CORE | 25.4mm(1 inch) / 76mm (3 inch) | ||
| BONDING | ≤2 | ||
| CORONA TREATED | Double side | ||
| SURFACE TENSION | 38 Dyne/cm ≤ 42 Dyne/cm | ||
| LAMINATION TEMP. | 90±10°C | ||
| ROLLER PRESSURE | 10 ~ 20Mpa | ||
| LAMINATION SPEED | 20 ~ 70M | ||
Description:
The surface of the heat-bonded film is extruded and coated with a low-temperature molten resin, and the film is bonded to the paper product by heat and pressure. Various surface finishes on printed surfaces add value. BOPP thermal laminate film provides a matte finish on printed surfaces.
A combination of good performance characteristics and low price point make BOPP Thermal Lamination Film ideal for all kinds of printed & unprinted paper and paper boards, including book covers, cosmetics packaging, magazines, documents, shopping bags, Diaries etc.
Why chooses NEI BOPP Thermal Lamination Film?
Environmentally friendly: It is environmentally friendly, not harmful to health and safe to use as it does not emit toxic gases or volatile substances. Safety during lamination because no solvent-based adhesives are used.
High performance: Compared to other solvent laminates, our films are better in terms of transparency and adhesion. Strong ability to absorb powder, prevent the laminate material from being extruded, bubbling and crushing. Subphotothermal laminating films are suitable for point UV and hot stamping.
Simple operation: Once the required temperature is reached, the operation is simple and no special technology is required.
High efficiency and energy saving: Production costs are greatly reduced because there is no need for film waste, a mixture of adhesive solvents, or UV heating lamps.
Suitable for different types of machines: The film is recommended for dry laminating machines. If the film is used in a wet laminate machine, fine tuning of the machine is required.
Why chooses NEI?
Special Instruction:
The recommended laminating roll temperature range for NEI BOPP thermal laminating film is 85 to 110°C and roll pressure is 10 to 20 Mpa. However, the optimal conditions depend on the speed and dimensional stability of the laminator chosen.
It is recommended that the printed surface be sufficiently dried before laminating and that one surface be sufficiently cooled before laminating to another surface.
Applications:
Packaging:
