| Place of Origin: | Guangdong, China |
| Brand Name: | NEi |
| Certification: | SGS Test Report / ISO9001 / ISO14001 |
| Model Number: | GLOSSY |
| Minimum Order Quantity: | 1 Ton / Trail Order Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film. |
| Delivery Time: | 15 -20 working days for one 20GP Container |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 Tons per month |
| Product Name:: | Glossy BOPP Thermal Lamination Film | Type:: | Pro-coating Film |
|---|---|---|---|
| Place Of Origin:: | Guangdong, China | Material:: | 12 Micron BOPP+ 6 Micron EVA |
| Feature:: | Moisture Proof | Hardness:: | Soft |
| Application:: | Lamination For Paper Media | Paper Core:: | 3 Inch (1 Inch Available On Request) |
| Surface Finish: | Glossy | Thickness:: | 18 Micron |
| High Light: | Gloss BOPP Lamination Film,Pro Coating Transparent BOPP Lamination Film |
||

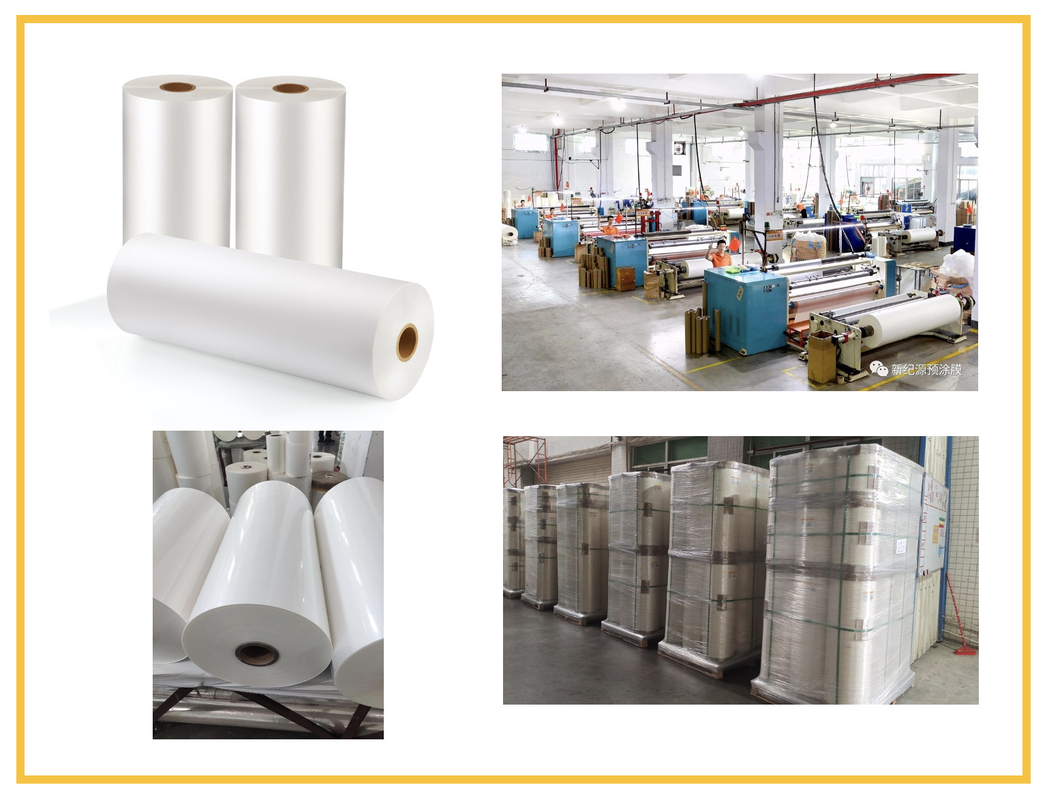

Pro Coating Transparent Gloss BOPP Lamination Film For Show Bags / Paper Media
Glossy Specifications:
|
TYPE |
THICKNESS (micron) |
||
|
GLOSSY |
TOTAL THICKNESS |
BASE FILM |
EVA |
|
17 |
12 |
5 |
|
|
18 |
12 |
6 |
|
|
20 |
12 |
8 |
|
|
22 |
12 |
10 |
|
|
23 |
15 |
8 |
|
|
25 |
15 |
10 |
|
|
27 |
15 |
12 |
|
|
30 |
15 |
15 |
|
|
42 |
28 |
14 |
|
|
WIDTH (mm) |
200 ~ 2200 |
||
|
LENGTH (m) |
100 ~ 5000 |
||
|
PAPER CORE |
25.4mm(1 inch) / 76mm (3 inch) |
||
|
BONDING |
≤2 |
||
|
CORONA TREATED |
Double side |
||
|
SURFACE TENSION |
38 Dyne/cm ≤ 42 Dyne/cm |
||
|
LAMINATION TEMP. |
90±10°C |
||
|
ROLLER PRESSURE |
10 ~ 20Mpa |
||
|
LAMINATION SPEED |
20 ~ 70M |
||
Description:
The surface of the heat-bonded film is extruded and coated with low-temperature molten resin, and the film is bonded into paper products by heat and pressure. Various surface polishing of printed surfaces that add value. The glossy BOPP thermal layered film provides a shiny color finish. Its use can improve the appearance and service life of the laminator.
Good performance characteristics and low price make BOPP thermal composite film ideal for all kinds of printed and non-printed paper and cardboard, including book covers, cosmetic packaging, magazines, documents, shopping bags, diaries, etc.
Thermal lamination film is also called HOT LAMINATION FILM, HOT LAMINATING FILM, THERMAL LAMINATING FILM, and PRO-COATING FILM.
Application example:
NEI BOPP thermal lamination film is widely used in the market because:
1. Environmentally friendly: non-toxic, odorless, or non-benzene because non-solvent based adhesive is used. It is environmentally friendly and non-hazardous to human health since no toxic gases or volatile content is emitted during lamination process.
2. Safe operation: Non-solvent based adhesive is used so it will eliminate the fire hazard that is caused by the use and storage of flammable solvents.
3. Excellent performance: Compared with wet lamination, thermal lamination film enhances the color saturation and brightness of presswork. It also has stronger ability of absorbing powder and adhesive force. Furthermore, it is effective to prevent being blistered or separated from presswork in lamination process.
4. Easy to operate: Once the desired temperature and pressure are reached, the layering operation can be easily performed. No other special techniques are required.
5. High efficiency: no waste of film, no doping solvent, no need for ultraviolet heating lamp (drying system), greatly reducing production costs and labor costs. Therefore, it also saves production space.
6. Wide adaptability: widely used in different types of laminators, including wet and dry laminators. If a wet laminator is used, only minor adjustments to the machine are required.
The brand NEI
1. NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.
2. 10 yeas of export experience to many countries, including South America, North America, Middle East, Asia, Africa, Oceania, etc. so we have good reputation in these areas.
3. Compared with other hot films, our EVA glue is 100% imported from Korea, which guarantees the adhesion of our film.
4. Size and thickness can be customized according to customer requirements. Labels can also be customized.
5. Fast production and delivery.
6. There is a wide range of thermal laminates and special laminates.
Special Instruction:
1. NEI glossy BOPP thermal lamination film is suggested to be laminated with the roller temperature range of 85 to 110°C and roller pressure of 10 to 20 Mpa. However, the optimum conditions are depending on the selected laminator’s speed and dimensional stability.
2. It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
