| Place of Origin: | China |
| Brand Name: | NEi |
| Certification: | ISO9001 / ISO14001 / SGS Test Report |
| Model Number: | GLOSS |
| Minimum Order Quantity: | 1 Ton / Trail Order Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film. |
| Delivery Time: | 15 -20 working days for one 20GP Container |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 Tons per month |
| Product Name:: | Glossy BOPP Thermal Laminating Film | Type:: | Hot Laminating Film |
|---|---|---|---|
| Material:: | BOPP + EVA | Application:: | Paper Lamination |
| Paper Core:: | 1 Inch And 3 Inch | Thickness:: | 17 To 43 Micron |
| Length:: | 100 - 4500M | Corona:: | Double Side Treatment |
| High Light: | BOPP Based Thermal Lamination Film,43 Micron Thermal Lamination Film,Gloss Lamination Film Double Side Treatment |
||

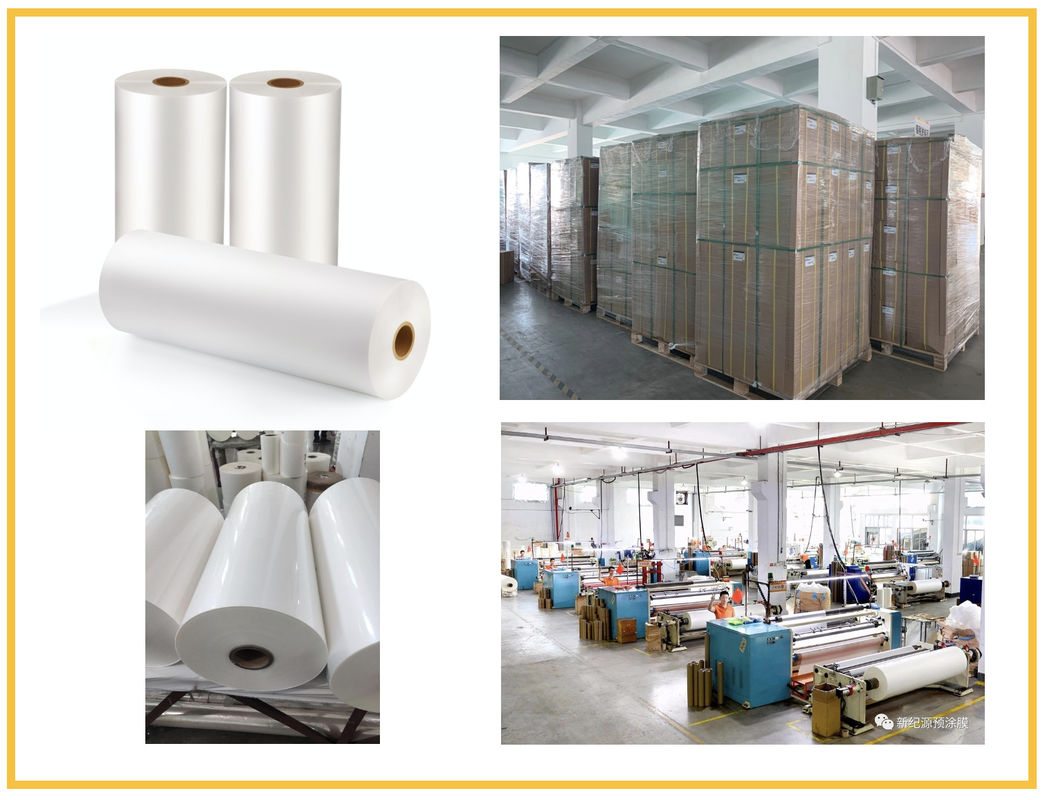

High Gloss Lamination Film BOPP Based Thermal Lamination Film
Glossy Specifications:
TYPE | THICKNESS (micron) | ||
GLOSSY | TOTAL | FILM BASE | EVA GLUE |
17 | 12 | 5 | |
18 | 12 | 6 | |
20 | 12 | 8 | |
22 | 12 | 10 | |
23 | 15 | 8 | |
25 | 15 | 10 | |
27 | 15 | 12 | |
30 | 15 | 15 | |
42 | 28 | 14 | |
WIDTH (mm) | 200 ~ 2200 | ||
LENGTH (m) | 100 ~ 4500 | ||
PAPER CORE | 25.4mm(1 inch) / 76mm (3 inch) | ||
BONDING | ≤2 | ||
CORONA TREATED | Double side | ||
SURFACE TENSION | 38 Dyne/cm ≤ 42 Dyne/cm | ||
LAMINATION TEMP. | 90±10°C | ||
ROLLER PRESSURE | 10 ~ 20Mpa | ||
LAMINATION SPEED | 20 ~ 70M | ||
Description:
Hot-laminated films have an extruded coated surface with low-temperature molten resin that can be laminated onto paper products by heat and pressure. Various surface treatments add value to printed surfaces. The glossy BOPP thermal laminated film provides a shiny colored finish. Its use can enhance the appearance and extend the life of all laminators.
A combination of good performance characteristics and low price point make BOPP thermal laminating films ideal for all kinds of printed & unprinted paper and paper boards, including book covers, cosmetics packaging, magazines, documents, shopping bags, Diaries, maps etc.
The Advantages Of NEI BOPP Composite Film VS Cold Coating Film
NEI Quality Control
Special Instruction:
1. It is recommended that NEI smooth biaxially oriented polypropylene thermal laminate film be laminated at a roller temperature range of 85 to 110°C and a roll press of 10 to 20 Mpa. However, the optimal conditions depend on the speed and dimensional stability of the selected laminator.
2. It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
