Place of Origin: | GuangDong/China |
Brand Name: | NEI |
Certification: | SGS Test Report / ISO9001 / ISO14001 |
Model Number: | Gloss |
Minimum Order Quantity: | 1 Ton / Trail Order Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film. |
Delivery Time: | 15 -20 working days for one 20GP Container |
Supply Ability: | 1000 Tons per month |
Material: | Biaxially Oriented Polypropylene | Application: | Lamination For Paper Boards |
---|---|---|---|
Color: | Transparent | Glue: | EVA |
Highlight: | 20 Mic Gloss Lamination Film,Hot Thermal Gloss Lamination Film,High Transparency Gloss Lamination Film |

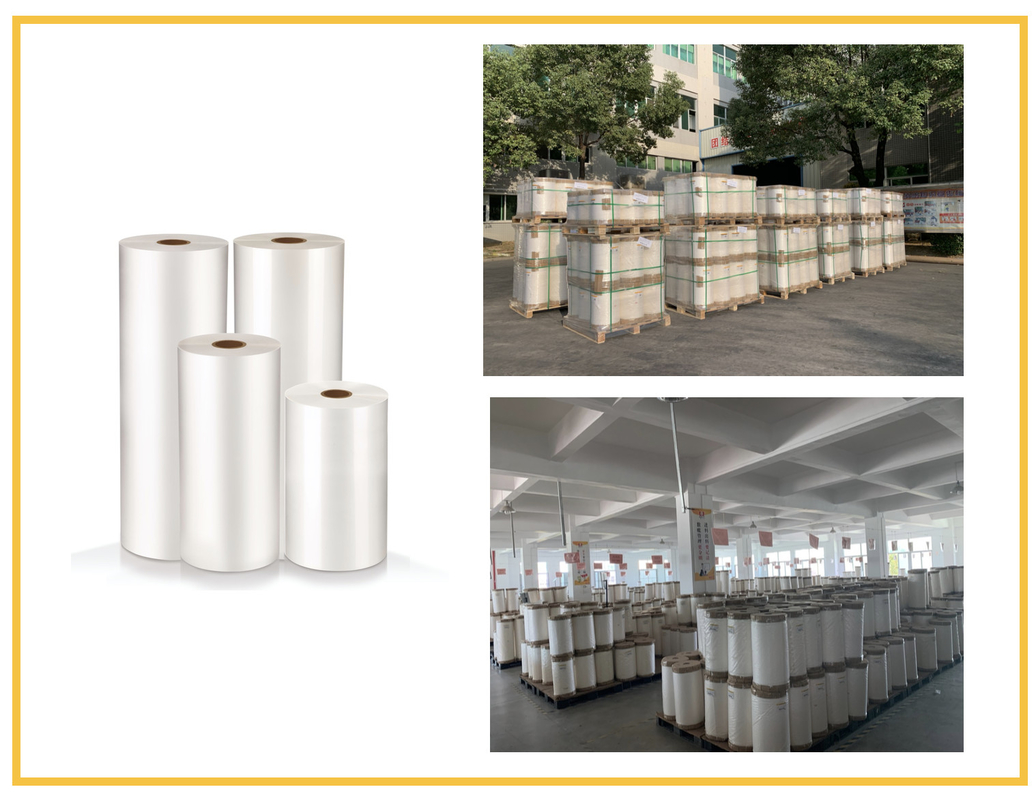

20 Micron Gloss Hot Biaxially Oriented Polypropylene Thermal Lamination Film Double Side Corona Treated High Transparency
Specifications of Gloss Bopp thermal lamination film:
TYPE | THICKNESS (micron) | ||
Gloss | TOTAL | BASE | EVA |
17 | 12 | 5 | |
18 | 12 | 6 | |
20 | 12 | 8 | |
22 | 12 | 10 | |
23 | 15 | 8 | |
25 | 15 | 10 | |
27 | 15 | 12 | |
30 | 15 | 15 | |
43 | 28 | 15 | |
WIDTH (mm) | 200 ~ 2210 | ||
LENGTH (m) | 100 ~ 8000 | ||
PAPER CORE | 25.4mm(1 inch) / 76mm (3 inch) | ||
BONDING | ≤2 | ||
CORONA TREATED | Double side | ||
SURFACE TENSION | 38 Dyne/cm ≤ 42 Dyne/cm | ||
LAMINATION TEMP. | 90±10°C | ||
ROLLER PRESSURE | 10 ~ 20Mpa | ||
LAMINATION SPEED | 20 ~ 70M |
Description:
The extruded coating surface of the thermolaminate film is made of low-temperature molten resin, which enables the film to be laminated into paper products by heat and pressure. The variety of available surface finishes add value to the printed surface. Ma GuangBOPP thermal laminating film provides a surface treatment for printed surfaces, preventing fingerprints and smudges. Matte film can last longer than glossy hot laminate film. The combination of good performance characteristics and low price makes BOPP thermal laminate suitable for a variety of printed and non-printed paperboard including book covers, cosmetic packaging, magazines, documents, shopping bags, diaries, etc.
Why chooses BOPP thermal lamination film?
1. Environmentally friendly: It is non-toxic, odorless, or non-benzene because non-solvent based adhesive is used.
2. Safe operation: Non-solvent based adhesive is used so it will eliminate the fire hazard that is caused by the use and storage of flammable solvents.
3. Excellent performance: Compared with wet lamination, thermal lamination film enhances the color saturation and brightness of presswork. It also has stronger ability of absorbing powder and adhesive force. Furthermore, it is effective to prevent being blistered or separated from presswork in lamination process. As it has strong adhesive ability and surface tension, it can be used for latter processes, including spot UV, hot stamping, die cutting, indentation process.
4. Ease of operation: once the desired temperature and pressure are reached, the layering can be easily operated. No other special technology is required.
5. High efficiency: Because there is no membrane waste, adhesive solvent mixing, or no need for ultraviolet heat lamp (drying system), greatly reduce production costs and labor costs. Therefore, it also saves production space.
6. Wide adaptability: widely applicable to different types of laminates, including wet and dry laminates.
Why chooses NEI?
· NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.
· 10 yeas of export experience to many countries, including South America, North America, Middle East, Asia, Africa, Oceania, etc. so we have good reputation in these areas.
· Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.
· Customize size and thickness according to customer requests. Labels can be customized as well.
· Rapid production and delivery.
· A wide range of thermal lamination film and special films.
Special Instruction of Gloss Bopp thermal lamination film:
· NEI matt BOPP thermal lamination film is suggested to be laminated with the roller temperature range of 85 to 110°C and roller pressure of 10 to 20 Mpa. However, the optimum conditions are depending on the selected laminator’s speed and dimensional stability.
· It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
