Product Details:
Place of Origin: Guangdong, China
Brand Name: NEi
Certification: SGS Test Report / ISO9001 / ISO14001
Model Number: Gloss & Matt
Payment & Shipping Terms:
Minimum Order Quantity: 1 Ton / Trail Order Negotiable
Price: Negotiable
Packaging Details: 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film.
Delivery Time: 15 -20 working days for one 20GP Container
Payment Terms: L/C, T/T
Supply Ability: 1000 Tons per month
Contact Now
Detailed Product Description
Product Name:: True Color BOPP Thermal Lamination Film Type:: Hot Lamination
Brand Name:: NEI Place Of Origin:: Guangdong, China
Material:: BOPP+EVA Processing Type:: Multiple Extrusion
Transparency:: Transparent Application:: Lamination For Offset Printing
Width:: 100mm-2200mm
High Light:

Clear BOPP Thermal Lamination Film

,

43mic BOPP Thermal Lamination Film

Clear BOPP Thermal Lamination Film Focus On Clarity And Adhesion 17mic - 43mic

True Color BOPP Thermal Lamination Film matt film



Specifications of BOPP Thermal Lamination Film:

TYPE THICKNESS (micron)
Matt TOTAL BASE EVA
17 12 5
18 12 6
20 12 8
22 12 10
23 15 8
25 15 10
27 15 12
28 15 13
30 15 15
43 18 25
WIDTH (mm) 200 ~ 2210
LENGTH (m) 100 ~ 8000
PAPER CORE 25.4mm(1 inch) / 76mm (3 inch)
BONDING ≤2
CORONA TREATED Double side
SURFACE TENSION 38 Dyne/cm ≤ 42 Dyne/cm
LAMINATION TEMP. 90±10°C
ROLLER PRESSURE 10 ~ 20Mpa
LAMINATION SPEED 20 ~ 70M





Description of BOPP Thermal Lamination Film:



Thermal lamination is an extruded film coated with low-temperature melting resin, which can be coated into paper products by heating and pressure. Various surface treatments can increase the value of printed surfaces. Matte white BOPP hot laminating film provides a matt treatment on the surface of printed materials. Compared with the gloss thermal lamination, the storage time of the matt film is longer.





Combined with good performance characteristics and low price, the white BOPP thermal composite film is ideal for all kinds of printed and unprinted paper and paperboard, including book covers, cosmetics packaging, magazines, documents, shopping bags, diaries, etc.



Why chooses True Color BOPP Thermal Lamination Film ?





  • 1. Environmentally friendly: It is non-toxic, odorless or benzene free because a non-solvent based adhesive is used. It is environmentally friendly and harmless to human health as no toxic gases or volatile components are emitted during lamination. In addition, it is easier to recycle than water-based composite films because the film and paper are easily separated.
  • 2. Safe operation: Non-solvent based adhesive is used so it will eliminate the fire hazard that is caused by the use and storage of flammable solvents.
  • 3. Excellent performance: Compared with wet lamination, thermal lamination film enhances the color saturation and brightness of presswork. It also has stronger ability of absorbing powder and adhesive force. Furthermore, it is effective to prevent being blistered or separated from presswork in lamination process. As it has strong adhesive ability and surface tension, it can be used for latter processes, including spot UV, hot stamping, die cutting, indentation process.
  • 4. Easy handling: Once the required temperature and pressure is met, lamination can be easily operated. No other special technique is required.
  • 5. High efficiency: Production cost and labor cost are reduced substantially as there is no film wastage, mixture of adhesive solvent, or no UV heating lamp (drying system) is required. Therefore, it saves production space as well.

NEI is your best choice!!

  • NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.
  • 10 years of export experience to many countries, including South America, North America, Middle East, Asia, Africa, Oceania, etc. so we have good reputation in these areas.
  • Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.
  • Customize size and thickness according to customer requests. Labels can be customized as well.
  • A wide range of thermal lamination film and special films.
  • Rapid production and delivery.



Special Instruction of BOPP Thermal Lamination Film:

  • NEI Matt Whiter BOPP thermal lamination film is suggested to be laminated with the roller temperature range of 85 to 110°C and roller pressure of 10 to 20 Mpa. However, the optimum conditions are depending on the selected laminator’s speed and dimensional stability.
  • It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.











Clear BOPP Thermal Lamination Film Focus On Clarity And Adhesion 17mic - 43mic 0Clear BOPP Thermal Lamination Film Focus On Clarity And Adhesion 17mic - 43mic 1









Applications of BOPP Thermal Lamination Film:



Clear BOPP Thermal Lamination Film Focus On Clarity And Adhesion 17mic - 43mic 2



Clear BOPP Thermal Lamination Film Focus On Clarity And Adhesion 17mic - 43mic 3



Clear BOPP Thermal Lamination Film Focus On Clarity And Adhesion 17mic - 43mic 4Clear BOPP Thermal Lamination Film Focus On Clarity And Adhesion 17mic - 43mic 5Clear BOPP Thermal Lamination Film Focus On Clarity And Adhesion 17mic - 43mic 6

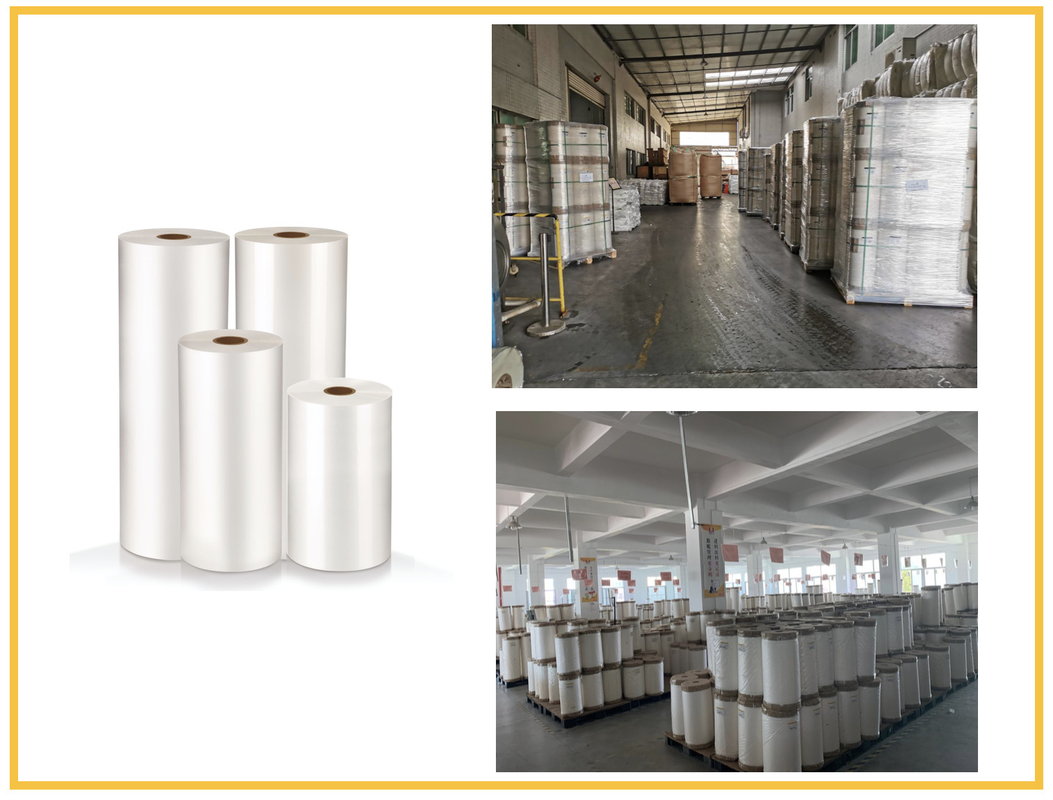

Packaging of BOPP Thermal Lamination Film:



Clear BOPP Thermal Lamination Film Focus On Clarity And Adhesion 17mic - 43mic 7
