Thermal Lamination BOPP Clear Film 17mic 2210mm Width

Thermal Lamination BOPP Clear Film 17mic 2210mm Width

Thermal Lamination BOPP Clear Film 17mic 2210mm Width
Thermal Lamination BOPP Clear Film 17mic 2210mm Width
Thermal Lamination BOPP Clear Film 17mic 2210mm Width
Product Details:
Place of Origin: Guangdong, China
Brand Name: NEi
Certification: SGS Test Report / ISO9001 / ISO14001
Model Number: Gloss & Matt
Payment & Shipping Terms:
Minimum Order Quantity: 1 Ton / Trail Order Negotiable
Price: Negotiable
Packaging Details: 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film.
Delivery Time: 15 working days for one 20GP Container
Payment Terms: L/C, T/T
Supply Ability: 1000 Tons per month
Contact Now
Detailed Product Description
Product Name:: BOPP Plastic Film 17mic Type:: Thermal Lamination Film
Brand Name:: NEI Place Of Origin:: China
Material:: 12mic BOPP+5mic EVA Processing Type:: Multiple Extrusion
Transparency:: Transparent Application:: Lamination For Printing
Width:: 100mm~2200mm
Highlight:

Thermal Lamination BOPP Clear Film

,

2210mm Width BOPP Clear Film

,

BOPP Clear Film 17mic

Biaxially Oriented Polyethylene BOPP Thermal Lamination Film BOPP Transparent Film Plastic Film 17mic



BOPP Thermal Lamination Film,focus on clarity and adhesion,17mic,gloss & matt



Specifications of Biaxially Oriented Polyethylene Transparent Film:

TYPE THICKNESS (micron)
Gloss TOTAL BASE EVA
15 10 5
17 12 5
18 12 6
20 12 8
22 12 10
23 15 8
25 15 10
27 15 12
28 15 13
30 15 15
42 18 24
WIDTH (mm) 200 ~ 2210
LENGTH (m) 100 ~ 8000
PAPER CORE 25.4mm(1 inch) / 76mm (3 inch)
BONDING ≤2
CORONA TREATED Double side
SURFACE TENSION 38 Dyne/cm ≤ 42 Dyne/cm
LAMINATION TEMP. 90±10°C
ROLLER PRESSURE 10 ~ 20Mpa
LAMINATION SPEED 20 ~ 70M





Description of Biaxially Oriented Polyethylene Transparent Film:



Thermal Lamination Films have extrusion-coated surface with low temperature melting resin, which enables the lamination of film to paper products by heat and pressure. Various surface finishes available add value to the printed surface. Gloss Pearl white BOPP Thermal Lamination Film provides a Gloss-finish on the surface of presswork. Compared with matt thermal lamination film, gloss film can be preserved for longer period of time.

A combination of good performance characteristics and low price point make Pearl white BOPP Thermal Lamination Film ideal for all kinds of printed & unprinted paper and paper boards, including book covers, cosmetics packaging, magazines, documents, shopping bags, Diaries etc.



Why chooses NEI Biaxially Oriented Polyethylene Transparent Film?



  • Environmentally friendly:It is environmentally friendly,non-hazardous to health and safe to use as no toxic gases or volatile content is emitted.Safety in laminating process as no solvent based adhesive is used.
  • High function: Compared with other solvent lamination, our film is better in clarity and bonding. Strong ability of absorbing powder, It prevents lamination from being pressed, bubbled and shredded off easily. Matt thermal lamination film is good for spot UV and hot stamping.
  • Easy handling:It is easy to operate once the required temperature is met and no special technique required.
  • Efficient and energy-saving: Production costs are greatly reduced because there is no film waste, no mixture of adhesive solvents, and no need for UV heat lamps.

Why chooses NEI?

  • NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.
  • 10 years of export experience to many countries, including South America, North America, Middle East, Asia, Africa, Oceania, etc. so we have good reputation in these areas.
  • Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.
  • Customize size and thickness according to customer requests. Labels can be customized as well.
  • A wide range of thermal lamination film and special films.



Special Instruction of Biaxially Oriented Polyethylene Transparent Film:

  • NEI BOPP thermal lamination film gloss film is suggested to be laminated with the roller temperature range of 85 to 110°C and roller pressure of 10 to 20 Mpa. However, the optimum conditions are depending on the selected laminator’s speed and dimensional stability.







Thermal Lamination BOPP Clear Film 17mic 2210mm Width 0















Applications of of Biaxially Oriented Polyethylene Transparent Film:



Thermal Lamination BOPP Clear Film 17mic 2210mm Width 1Thermal Lamination BOPP Clear Film 17mic 2210mm Width 2



Thermal Lamination BOPP Clear Film 17mic 2210mm Width 3Thermal Lamination BOPP Clear Film 17mic 2210mm Width 4

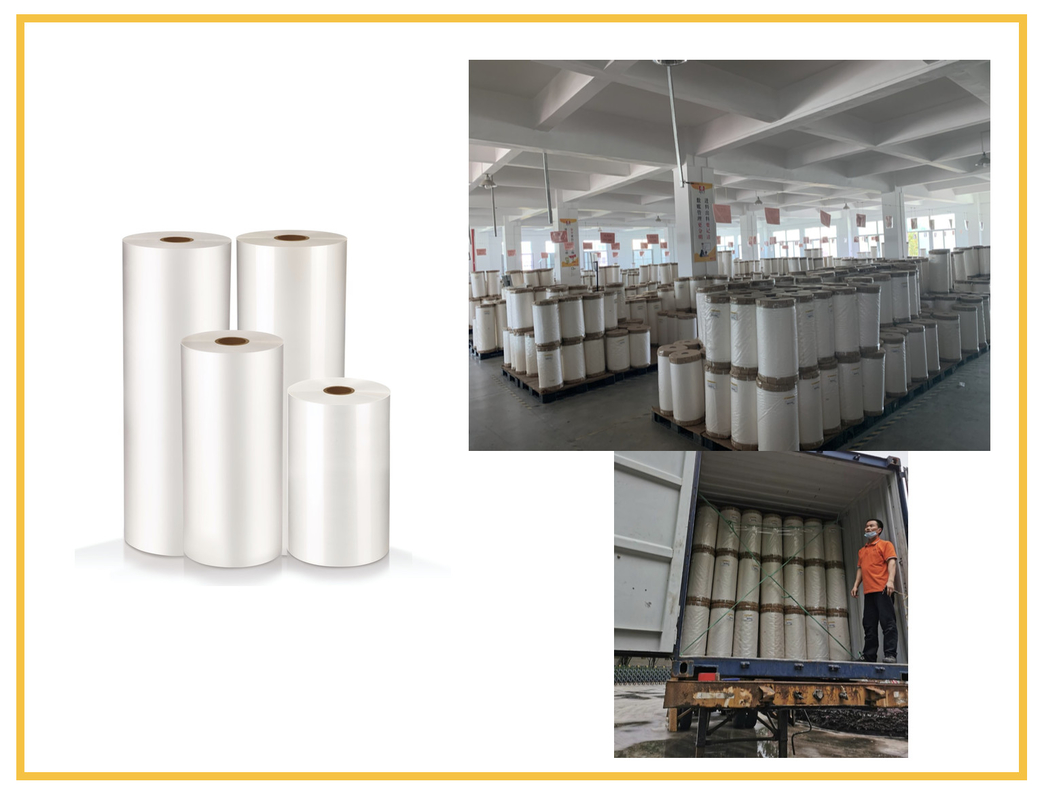

Packaging:



Thermal Lamination BOPP Clear Film 17mic 2210mm Width 5
