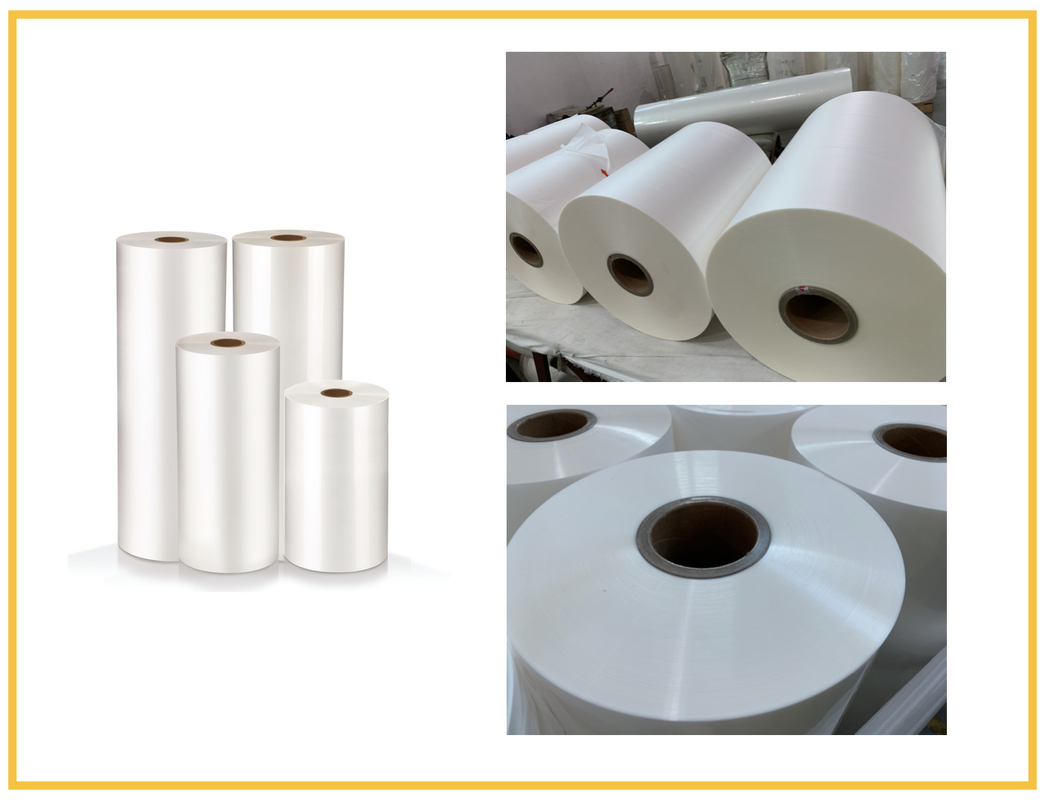

Double Side BOPP Thermal Lamination Film Focus On Clarity And Adhesion 17mic

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	NEi
Certification:	SGS Test Report / ISO9001 / ISO14001
Model Number:	Gloss & Matt 17mic

Payment & Shipping Terms:

Minimum Order Quantity:	1 Ton / Trail Order Negotiable
Price:	Negotiable
Packaging Details:	1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film.
Delivery Time:	15 working days for one 20GP Container
Payment Terms:	L/C, T/T
Supply Ability:	1000 Tons per month

Contact Now

Detailed Product Description

Product Name::	BOPP Plastic Film 17mic	Type::	Thermal Lamination
Brand Name::	NEI	Place Of Origin::	China
Material::	12mic BOPP+ 5mic EVA	Processing Type::	Multiple Extrusion
Transparency::	Transparent	Application::	Lamination For Printing
High Light:	Double Side BOPP Thermal Lamination Film , 17mic BOPP Thermal Lamination Film

BOPP Thermal Lamination Film,focus on clarity and adhesion,17mic

Specifications of BOPP Plastic Film:

TYPE	THICKNESS (micron)
Gloss	TOTAL	BASE	EVA
	15	10	5
	17	12	5
	18	12	6
	20	12	8
	22	12	10
	23	15	8
	25	15	10
	27	15	12
	28	15	13
	30	15	15
	42	18	24
WIDTH (mm)	200 ~ 2210
LENGTH (m)	100 ~ 8000
PAPER CORE	25.4mm(1 inch) / 76mm (3 inch)
BONDING	≤2
CORONA TREATED	Double side
SURFACE TENSION	38 Dyne/cm ≤ 42 Dyne/cm
LAMINATION TEMP.	90±10°C
ROLLER PRESSURE	10 ~ 20Mpa
LAMINATION SPEED	20 ~ 70M

Description of BOPP Plastic Film:

Thermal Lamination Films have extrusion-coated surface with low temperature melting resin, which enables the lamination of film to paper products by heat and pressure. Various surface finishes available add value to the printed surface. Gloss Pearl white BOPP Thermal Lamination Film provides a Gloss-finish on the surface of presswork. Compared with matt thermal lamination film, gloss film can be preserved for longer period of time.

A combination of good performance characteristics and low price point make Pearl white BOPP Thermal Lamination Film ideal for all kinds of printed & unprinted paper and paper boards, including book covers, cosmetics packaging, magazines, documents, shopping bags, Diaries etc.

Why chooses NEI Pearl White BOPP Plastic Film?

Environmentally friendly:It is environmentally friendly,non-hazardous to health and safe to use as no toxic gases or volatile content is emitted.Safety in laminating process as no solvent based adhesive is used.
High function: Compared with other solvent lamination, our film is better in clarity and bonding. Strong ability of absorbing powder, It prevents lamination from being pressed, bubbled and shredded off easily. Matt thermal lamination film is good for spot UV and hot stamping.
Easy handling:It is easy to operate once the required temperature is met and no special technique required.
Efficient and energy-saving: Production cost is reduced substantially as there is no film wastage, mixture of adhesive solvent, and no UV heating lamp is required.
Adaptable to different kinds of machines: This film is recommended to be used in dry laminator. Small adjustments need to be made to the machine if the film is used in wet laminator.

Special Instruction of BOPP Plastic Film:

NEI BOPP Thermal laminating film Gloss film recommended laminating roll temperature range of 85 to 110°C, roll pressure of 10 to 20 Mpa. However, the optimal conditions depend on the speed and dimensional stability of the selected laminator.
It is recommended that the printing surface be fully dried before laminating and that one surface be cooled sufficiently before laminating to other surfaces.
