| Place of Origin: | GuangDong/China |
| Brand Name: | NEI |
| Certification: | SGS Test Report / ISO9001 / ISO14001 |
| Model Number: | Gloss & Matt |
| Minimum Order Quantity: | 1 Ton / Trail Order Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1. Packed in paper cartons then on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film. |
| Delivery Time: | 20-25 working days for one 40HQ Container |
| Supply Ability: | 1000 Tons per month |
| Material: | Bopp Film + Eva | Application: | Lamination For Paper Boards |
|---|---|---|---|
| Paper Core: | 3 Inch (1 Inch Available On Request) | Finish: | Matt/gloss |
| Type: | Thermal Lamination | ||
| High Light: | Eva Coating BOPP Thermal Lamination Film,BOPP Thermal Lamination Film 3 Inch |
||

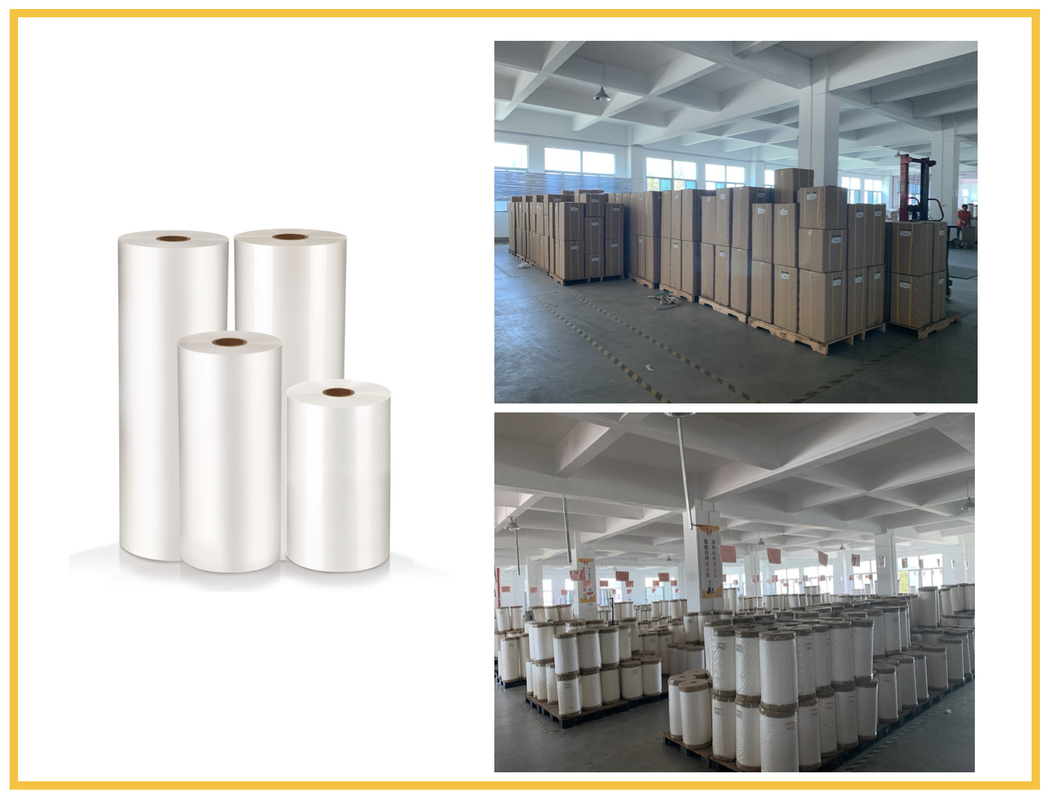

Eva Coating BOPP Thermal Lamination Film For Printing Industry
Specifications of BOPP Thermal Lamination Film:
| TYPE | THICKNESS (micron) | ||
| MATTE | TOTAL | BASE | EVA |
| 17 | 12 | 5 | |
| 18 | 12 | 6 | |
| 20 | 12 | 8 | |
| 22 | 12 | 10 | |
| 23 | 15 | 8 | |
| 25 | 15 | 10 | |
| 27 | 15 | 12 | |
| 30 | 15 | 15 | |
| 43 | 28 | 15 | |
| WIDTH (mm) | 200 ~ 2210 | ||
| LENGTH (m) | 100 ~ 8000 | ||
| PAPER CORE | 25.4mm(1 inch) / 76mm (3 inch) | ||
| BONDING | ≤2 | ||
| CORONA TREATED | Double side | ||
| SURFACE TENSION | 38 Dyne/cm ≤ 42 Dyne/cm | ||
| LAMINATION TEMP. | 90±10°C | ||
| ROLLER PRESSURE | 10 ~ 20Mpa | ||
| LAMINATION SPEED | 20 ~ 70M | ||
Description of Bopp Thermal Matt Lamination Film:
Thermally laminated films have extruded coated surfaces and a low-temperature molten resin that can be laminated onto paper products by heat and pressure. The variety of surface finishes available can add value to the printed surface. The matte BOPP thermal composite film provides a matte finish on the printed surface, preventing fingerprints and stains. Compared with the glossy hot composite film, matte film can be preserved for a longer time.
BOPP thermal composite film has good performance characteristics and low price, is an ideal choice for all kinds of printed and unprinted paper and cardboard, including book covers, cosmetic packaging, magazines, documents, shopping bags, diaries, etc.
Why chooses BOPP thermal lamination film?
1. Environmentally friendly: It is non-toxic, odorless, or non-benzene because non-solvent based adhesive is used.
2. Safe operation: Non-solvent based adhesive is used so it will eliminate the fire hazard that is caused by the use and storage of flammable solvents.
3. Excellent performance: Compared with wet lamination, thermal lamination film enhances the color saturation and brightness of presswork. It also has stronger ability of absorbing powder and adhesive force. Furthermore, it is effective to prevent being blistered or separated from presswork in lamination process. As it has strong adhesive ability and surface tension, it can be used for latter processes, including spot UV, hot stamping, die cutting, indentation process.
4. Easy handling: Once the required temperature and pressure is met, lamination can be easily operated. No other special technique is required.
5. High efficiency: Production costs and labor costs are greatly reduced because there is no film waste, no mixing of adhesive solvents, and no UV heat lamp (drying system). Therefore, it also saves production space.
6. Wide adaptability: Widely applicable to all types of laminating machines, including wet and dry laminating machines.
NEI is your best choice!!
1.NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.
2.10 yeas of export experience to many countries all over the world and have good reputation in this market.
· Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.
· Customize size,thickness,labels.
· Rapid production and delivery.
· A wide range of thermal lamination film and special films.
Special Instruction of Bopp Thermal Matt Lamination Film:
· NEI matt BOPP thermal lamination film is suggested to be laminated with the roller temperature range of 85 to 110°C and roller pressure of 10 to 20 Mpa. However, the optimum conditions are depending on the selected laminator’s speed and dimensional stability.
· It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
