SGS Gloss Lamination Film 20mic Plastic EVA Coated Hot Thermal Lamination Film

SGS Gloss Lamination Film 20mic Plastic EVA Coated Hot Thermal Lamination Film

SGS Gloss Lamination Film 20mic Plastic EVA Coated Hot Thermal Lamination Film
SGS Gloss Lamination Film 20mic Plastic EVA Coated Hot Thermal Lamination Film
SGS Gloss Lamination Film 20mic Plastic EVA Coated Hot Thermal Lamination Film
Product Details:
Place of Origin: GuangDong/China
Brand Name: NEI
Certification: SGS Test Report / ISO9001 / ISO14001
Model Number: Gloss
Payment & Shipping Terms:
Minimum Order Quantity: one pallet
Price: Negotiable
Packaging Details: 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film.
Delivery Time: 15 -20 working days for one 20GP Container
Supply Ability: 1000 Tons per month
Contact Now
Detailed Product Description
Material: Bopp Film + Eva Application: Lamination For Paper Boards
Colour: White/pearl White
High Light:

Gloss Lamination Film 20mic

,

EVA Coated Gloss Lamination Film

20mic gloss Lamination Film , coated film,plastic film, eva coated film,hot thermal lamination film

Gloss Lamination Film, 20mic, Coated Film, Plastic Film, EVA Coated Film, Hot Thermal Lamination Film

Gloss Bopp thermal lamination film

SGS Gloss Lamination Film 20mic Plastic EVA Coated Hot Thermal Lamination Film 0

Specifications:

TYPE THICKNESS (micron)
MATTE TOTAL BASE EVA
17 12 5
18 12 6
20 12 8
22 12 10
23 15 8
25 15 10
27 15 12
30 15 15
43 28 15
WIDTH (mm) 200 ~ 2210
LENGTH (m) 100 ~ 8000
PAPER CORE 25.4mm(1 inch) / 76mm (3 inch)
BONDING ≤2
CORONA TREATED Double side
SURFACE TENSION 38 Dyne/cm ≤ 42 Dyne/cm
LAMINATION TEMP. 90±10°C
ROLLER PRESSURE 10 ~ 20Mpa
LAMINATION SPEED 20 ~ 70M



Description:

The hot pressed composite film has an extruded coating surface of low-temperature molten resin, which allows the film to be laminated onto paper products through heat and pressure. Various surface treatments can increase the value of printed surfaces. Matte BOPP hot press film provides a matte finish on the surface of printed materials to prevent fingerprints and stains. Compared to glossy hot pressed films, matte films can be stored for a longer period of time.

BOPP hot press film has excellent performance characteristics and low price, making it an ideal choice for various printed and non printed paper and cardboard, including book covers, cosmetic packaging, magazines, documents, shopping bags, diaries, etc.

Why chooses BOPP thermal lamination film?

1. Environmentally friendly: Due to the use of non solvent adhesives, it is non-toxic, odorless, or free of benzene.

2. Operational safety: The use of non solvent adhesives eliminates fire hazards caused by the use and storage of flammable solvents.

3. Excellent performance: Compared with wet lamination, thermal lamination improves the color saturation and brightness of printed materials. Has strong powder absorption ability and adhesion. In addition, it can effectively prevent foaming or separation from the printed material during the lamination process. Due to its strong adhesive ability and surface tension, it can be used in subsequent processes, including spot UV, hot stamping, die-cutting, indentation, and other processes.

4. Easy to operate: Once the required temperature and pressure are reached, it can be easily operated. No other special techniques are required.

5. High efficiency: Production cost and labor cost are reduced substantially as there is no film wastage, mixture of adhesive solvent, or no UV heating lamp (drying system) is required. Therefore, it saves production space as well.

6. Wide adaptability: It is widely adaptable to different types of lamination machines, including wet and dry laminator.

Why chooses NEI?

· Since 1995, NEI has had professional experience in film industry, so we have good quality control and after-sales service to support you.

· With 10 years of export experience, we have a good reputation in many countries, including South America, North America, the Middle East, Asia, Africa, Oceania, and so on.

· Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.

· Customize size and thickness according to customer requests. Labels can be customized as well.

· Rapid production and delivery.

· A wide range of thermal lamination film and special films.

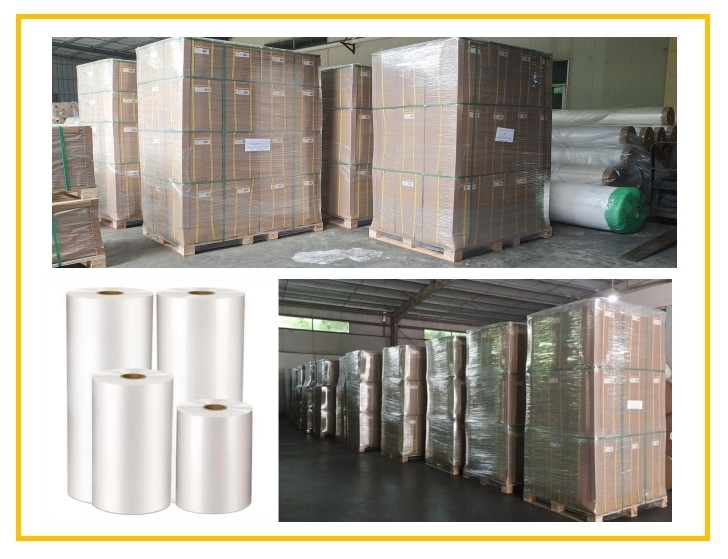

SGS Gloss Lamination Film 20mic Plastic EVA Coated Hot Thermal Lamination Film 1

Special Instruction:

· It is recommended to composite the NEI matte BOPP hot pressed film under roller temperature of 85-110 ℃ and roller pressure of 10-20 Mpa. However, the optimal conditions depend on the speed and dimensional stability of the selected laminating machine.

· It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
