| Place of Origin: | Guangdong, China |
| Brand Name: | NEi |
| Certification: | SGS Test Report / ISO9001 / ISO14001 |
| Model Number: | GLOSSY / MATTE |
| Minimum Order Quantity: | one ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film. |
| Delivery Time: | 15 -20 working days for one 20GP Container |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 Tons per month |
| Product Name:: | BOPP Thermal Lamination Film | Type:: | Thermal Lamination Film |
|---|---|---|---|
| Place Of Origin:: | Guangdong, China | Material:: | BOPP+EVA |
| Processing Type:: | Multiple Extrusion | Transparency:: | Transparent |
| Application:: | Lamination For Offset Printing | Paper Core:: | 3 Inch (1 Inch Available On Request) |
| Thickness:: | 25 Mic | ||
| High Light: | Strong Adhesiveness BOPP Hot Press Film,Offset Printing BOPP Hot Press Film |
||

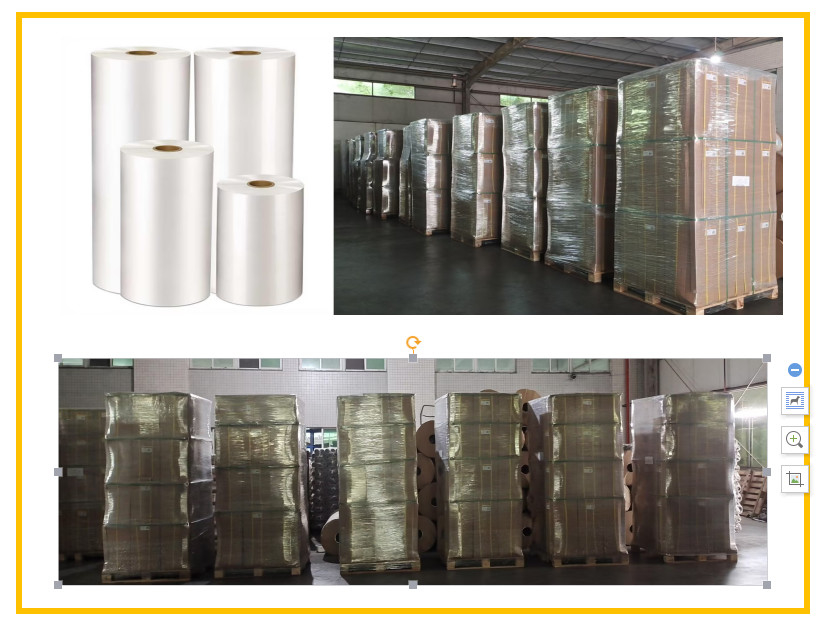

Strong Adhesiveness BOPP Thermal Lamination Film For Offset Printing Photos
Glossy Specifications:
|
TYPE |
THICKNESS (micron) |
||
|
GLOSSY |
TOTAL |
BASE |
EVA |
|
17 |
12 |
5 |
|
|
18 |
12 |
6 |
|
|
20 |
12 |
8 |
|
|
22 |
12 |
10 |
|
|
23 |
15 |
8 |
|
|
25 |
15 |
10 |
|
|
27 |
15 |
12 |
|
|
30 |
15 |
15 |
|
|
42 |
28 |
14 |
|
|
WIDTH (mm) |
200 ~ 2210 |
||
|
LENGTH (m) |
100 ~ 8000 |
||
|
PAPER CORE |
25.4mm(1 inch) / 76mm (3 inch) |
||
|
BONDING |
≤2 |
||
|
CORONA TREATED |
Double side |
||
|
SURFACE TENSION |
38 Dyne/cm ≤ 42 Dyne/cm |
||
|
LAMINATION TEMP. |
90±10°C |
||
|
ROLLER PRESSURE |
10 ~ 20Mpa |
||
|
LAMINATION SPEED |
20 ~ 70M |
||
Matte Specifications:
| TYPE | THICKNESS (micron) | ||
| MATTE | TOTAL | BASE | EVA |
| 17 | 12 | 5 | |
| 18 | 12 | 6 | |
| 20 | 12 | 8 | |
| 22 | 12 | 10 | |
| 23 | 15 | 8 | |
| 25 | 15 | 10 | |
| 27 | 15 | 12 | |
| 30 | 15 | 15 | |
| 43 | 28 | 15 | |
| WIDTH (mm) | 200 ~ 2210 | ||
| LENGTH (m) | 100 ~ 8000 | ||
| PAPER CORE | 25.4mm(1 inch) / 76mm (3 inch) | ||
| BONDING | ≤2 | ||
| CORONA TREATED | Double side | ||
| SURFACE TENSION | 38 Dyne/cm ≤ 42 Dyne/cm | ||
| LAMINATION TEMP. | 90±10°C | ||
| ROLLER PRESSURE | 10 ~ 20Mpa | ||
| LAMINATION SPEED | 20 ~ 70M | ||
Description:
The hot pressed composite film has an extruded coating surface of low-temperature molten resin, which allows the film to be laminated onto paper products through heat and pressure. Various surface treatments can increase the value of printed surfaces.
The glossy BOPP hot press film provides a shiny colored finish. Its use can improve the appearance and increase the lifespan of all laminated printed materials. Matte BOPP hot press film provides a matte finish on the surface of printed materials to prevent fingerprints and stains. Compared to glossy hot pressed films, matte films can be stored for a longer period of time.
Applications:
Why chooses NEI BOPP thermal lamination film?
1. Environmentally friendly: Due to the use of non solvent adhesives, it is non-toxic, odorless, or free of benzene. During the lamination process, no toxic gases or volatile substances are emitted, which is harmless to human health. In addition, it is easier to recover than water-based laminated membranes because the membrane and paper can be easily separated.
2. Safe operation: Non-solvent based adhesive is used so it will eliminate the fire hazard that is caused by the use and storage of flammable solvents.
3.Excellent performance: Compared with wet lamination, thermal lamination improves the color saturation and brightness of printed materials. Has strong powder absorption ability and adhesion. In addition, it can effectively prevent foaming or separation from the printed material during the lamination process. Due to its strong adhesive ability and surface tension, it can be used in subsequent processes, including spot UV, hot stamping, die-cutting, indentation, and other processes.
4. Easy handling: Once the required temperature and pressure is met, lamination can be easily operated. No other special technique is required.
5. High efficiency: No waste of film, no mixing of adhesive solvents, no need for UV heating lamps (drying systems), greatly reducing production and labor costs. Therefore, it also saves production space.
6. Wide adaptability: widely applicable to different types of SMT machines, including wet and dry SMT machines. If using a wet laminating machine, only minor adjustments need to be made to the machine.
Why chooses NEI?
1. NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.
2. With 10 years of export experience, we have a good reputation in many countries, including South America, North America, the Middle East, Asia, Africa, Oceania, and so on.
3. Compared to other hot pressed films, our EVA adhesive is 100% imported from South Korea, ensuring the adhesion of the film.
4. Customize size and thickness according to customer requests. Labels can be customized as well.
5. Rapid production and delivery.
6. A wide range of thermal lamination film and special films.
Special Instruction:
1. It is recommended to composite the NEI BOPP hot pressed film under roller temperature of 85-110 ℃ and roller pressure of 10-20 Mpa. However, the optimal conditions depend on the speed and dimensional stability of the selected laminating machine.
2. It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
