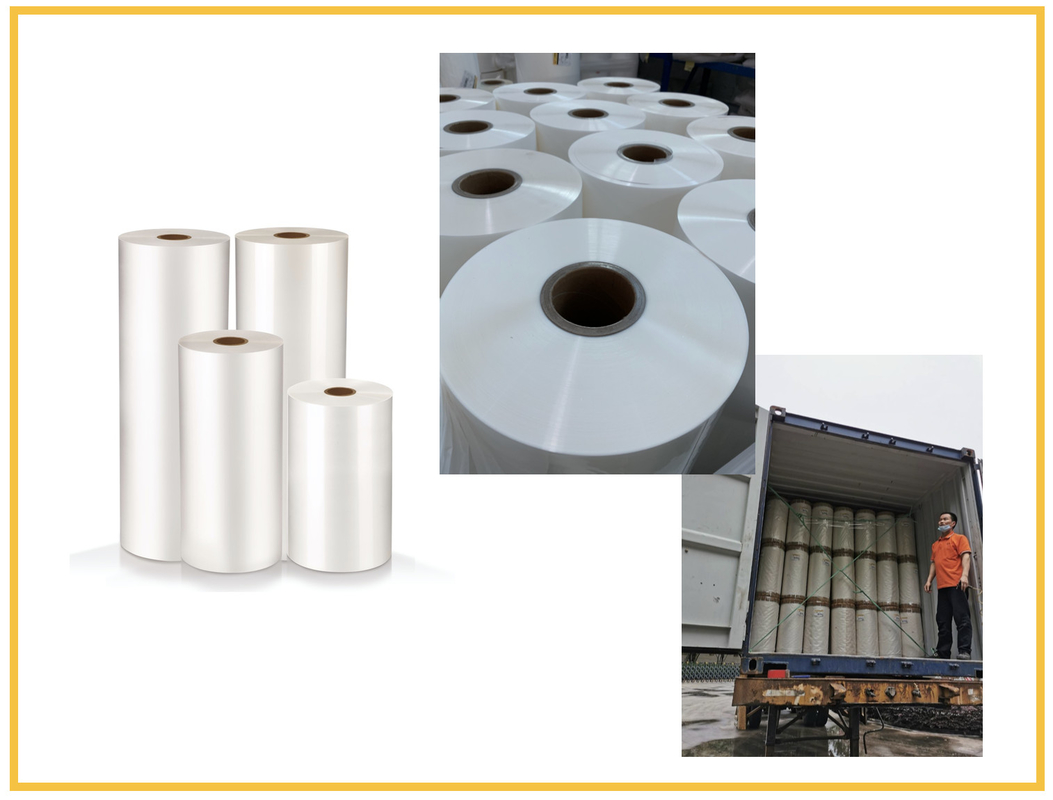

Transparent BOPP Thermal Film 20mic 200mm Width 1 Inch Paper Core

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	NEi
Certification:	SGS Test Report / ISO9001 / ISO14001
Model Number:	Gloss & Matt

Payment & Shipping Terms:

Minimum Order Quantity:	1 Ton / Trail Order Negotiable
Price:	Negotiable
Packaging Details:	1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film.
Delivery Time:	15 working days for one 20GP Container
Payment Terms:	L/C, T/T
Supply Ability:	1000 Tons per month

Contact Now

Detailed Product Description

Product Name::	BOPP Plastic Film 20mic	Type::	Hot Lamination Film
Brand Name::	NEI	Place Of Origin::	Guangdong, China
Material::	12mic BOPP+ 8mic EVA	Processing Type::	Multiple Extrusion
Transparency::	Transparent	Application::	Lamination For Printing & Packaging
Length::	2000/3000/4000m
High Light:	Transparent BOPP Thermal Film , BOPP Thermal Film 20mic , 200mm Width BOPP Thermal Film

Biaxially Oriented Polyethylene BOPP Thermal Laminating Film BOPP Transparent Film Plastic Film 20mic

Specifications of Biaxially Oriented Polyethylene Transparent Film:

TYPE	THICKNESS (micron)
Gloss	TOTAL	BASE	EVA
	15	10	5
	17	12	5
	18	12	6
	20	12	8
	22	12	10
	23	15	8
	25	15	10
	27	15	12
	28	15	13
	30	15	15
	42	18	24
WIDTH (mm)	200 ~ 2210
LENGTH (m)	100 ~ 8000
PAPER CORE	25.4mm(1 inch) / 76mm (3 inch)
BONDING	≤2
CORONA TREATED	Double side
SURFACE TENSION	38 Dyne/cm ≤ 42 Dyne/cm
LAMINATION TEMP.	90±10°C
ROLLER PRESSURE	10 ~ 20Mpa
LAMINATION SPEED	20 ~ 70M

Description of Biaxially Oriented Polyethylene Transparent Film:

Thermal Lamination Films have extrusion-coated surface with low temperature melting resin, which enables the lamination of film to paper products by heat and pressure. Various surface finishes available add value to the printed surface. Gloss Pearl white BOPP Thermal Lamination Film provides a Gloss-finish on the surface of presswork. Compared with matt thermal lamination film, gloss film can be preserved for longer period of time.

A combination of good performance characteristics and low price point make Pearl white BOPP Thermal Lamination Film ideal for all kinds of printed & unprinted paper and paper boards, including book covers, cosmetics packaging, magazines, documents, shopping bags, Diaries etc.

Why chooses NEI Biaxially Oriented Polyethylene Transparent Film?

Environmentally friendly:It is environmentally friendly, harmless to health and safe to use as no toxic gases or volatile components are emitted. Safety during lamination because no solvent-based adhesives are used.
High function: Compared with other solvent laminates, our films are better in terms of transparency and adhesion. Strong powder absorption ability, prevent lamination easy to be pressed, blistering, fragmentation. Sub-photothermal composite film is suitable for point UV and hot stamping.
Easy handling:It is easy to operate once the required temperature is met and no special technique required.
Efficient and energy-saving: Production cost is reduced substantially as there is no film wastage, mixture of adhesive solvent, and no UV heating lamp is required.
Adaptable to different kinds of machines: This film is recommended to be used in dry laminator. Small adjustments need to be made to the machine if the film is used in wet laminator.

Why chooses NEI?

NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.
10 years of export experience to many countries, including South America, North America, Middle East, Asia, Africa, Oceania, etc. so we have good reputation in these areas.
Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.
Customize size and thickness according to customer requests. Labels can be customized as well.

Special Instruction of Biaxially Oriented Polyethylene Transparent Film:

NEI BOPP thermal lamination film gloss film is suggested to be laminated with the roller temperature range of 85 to 110°C and roller pressure of 10 to 20 Mpa. However, the optimum conditions are depending on the selected laminator’s speed and dimensional stability.
