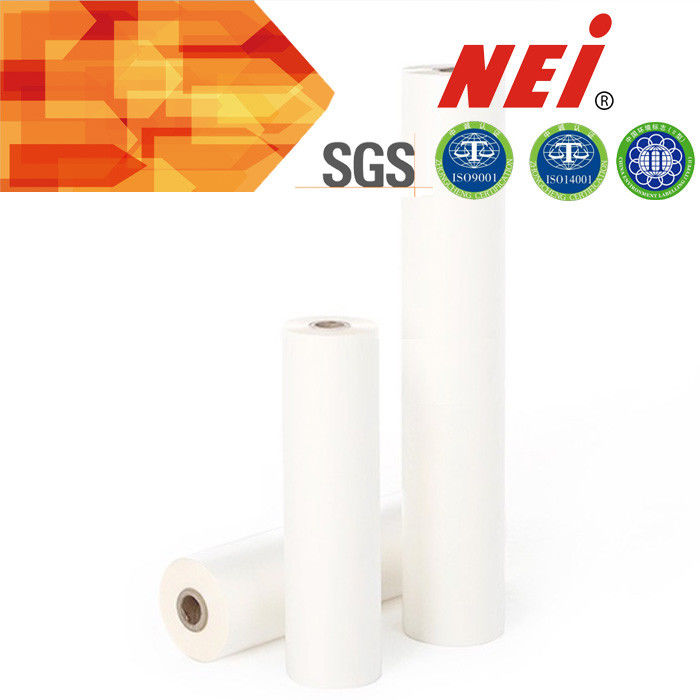

1 Inch Clear Self Adhesive Laminating Roll Multiple Extrusion Processing

1 Inch Clear Self Adhesive Laminating Roll Multiple Extrusion Processing

1 Inch Clear Self Adhesive Laminating Roll Multiple Extrusion Processing

Product Details:

Place of Origin: Guangdong, China
Brand Name: NEi
Certification: SGS Test Report / ISO9001 / ISO14001
Model Number: GLOSSY / MATTE

Payment & Shipping Terms:

Minimum Order Quantity: 1 Ton / Trail Order Negotiable
Price: Negotiable
Packaging Details: 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film.
Delivery Time: 15 -20 working days for one 20GP Container
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Tons per month
Contact Now
Detailed Product Description
Product Name:: Thermal Laminating Film Roll Type:: Thermal Lamination Film
Place Of Origin:: Guangdong, China Material:: BOPP+EVA
Processing Type:: Multiple Extrusion Transparency:: Transparent
Application:: Lamination Paper Core:: 1 Inch
Surface Finish:: Glossy / Matte



1 Inch Clear Self Adhesive Laminating Roll Multiple Extrusion Processing





BOPP Glossy Specifications:



TYPE

THICKNESS (micron)

GLOSSY

TOTAL

BASE

EVA

17

12

5

18

12

6

20

12

8

22

12

10

23

15

8

25

15

10

27

15

12

30

15

15

42

28

14

WIDTH (mm)

200 ~ 1880

LENGTH (m)

100 ~ 500

PAPER CORE

25.4mm(1 inch) / 76mm (3 inch)

BONDING

≤2

CORONA TREATED

Double side

SURFACE TENSION

38 Dyne/cm ≤ 42 Dyne/cm

LAMINATION TEMP.

90±10°C

ROLLER PRESSURE

10 ~ 20Mpa

LAMINATION SPEED

20 ~ 70M






BOPP Matte Specifications:



TYPE THICKNESS (micron)
MATTE TOTAL BASE EVA
17 12 5
18 12 6
20 12 8
22 12 10
23 15 8
25 15 10
27 15 12
30 15 15
43 28 15
WIDTH (mm) 200 ~ 1880
LENGTH (m) 100 ~ 500
PAPER CORE 25.4mm(1 inch) / 76mm (3 inch)
BONDING ≤2
CORONA TREATED Double side
SURFACE TENSION 38 Dyne/cm ≤ 42 Dyne/cm
LAMINATION TEMP. 90±10°C
ROLLER PRESSURE 10 ~ 20Mpa
LAMINATION SPEED 20 ~ 70M






Digital Lamination Film



TYPE THICKNESS (micron)
MATT TOTAL BASE EVA
30 15 15
WIDTH (mm) 100 ~ 1570
LENGTH (m) 100m, 200m, 500m
PAPER CORE 25.4mm(1 inch) / 76mm (3 inch)
BONDING ≤2
CORONA TREATED Double side
SURFACE TENSION 38 Dyne/cm ≤ 42 Dyne/cm
LAMINATION TEMP. 90±10°C
ROLLER PRESSURE 10 ~ 20Mpa
LAMINATION SPEED 20 ~ 70M






Description:



Thermal Lamination Films have extrusion-coated surface with low temperature melting resin, which enables the lamination of film to paper products by heat and pressure. Various surface finishes available add value to the printed surface.



Glossy BOPP thermal lamination film offers a shiny colorful finish. Its use can enhance the look and increase all laminated presswork’s useful lifetime. Matt BOPP thermal lamination film provides a matt-finish on the surface of presswork, protecting from fingerprints and smudges. Compared with gloss thermal lamination film, matt film can be preserved for longer period of time.



Super Bonding Thermal Lamination Film is one type of BOPP thermal lamination film especially used in laminating digital presswork. Most of digital printing materials are of silicone oil base, so general BOPP thermal lamination film is easy to be tore off after lamination. Therefore, we have invented this super bonding film to cope with silicone oil so that films can stick well on digital presswork.



1 Inch Clear Self Adhesive Laminating Roll Multiple Extrusion Processing






Why chooses NEI?



1. NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.



2. 10 yeas of export experience to many countries, including South America, North America, Middle East, Asia, Africa, Oceania, etc. so we have good reputation in these areas.



3. Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.



4. Customize size and thickness according to customer requests. Labels can be customized as well.



5. Rapid production and delivery.



6. A wide range of thermal lamination film and special films.






Special Instruction:



1. NEI BOPP thermal lamination film is suggested to be laminated with the roller temperature range of 85 to 110°C and roller pressure of 10 to 20 Mpa. However, the optimum conditions are depending on the selected laminator’s speed and dimensional stability.



2. It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
