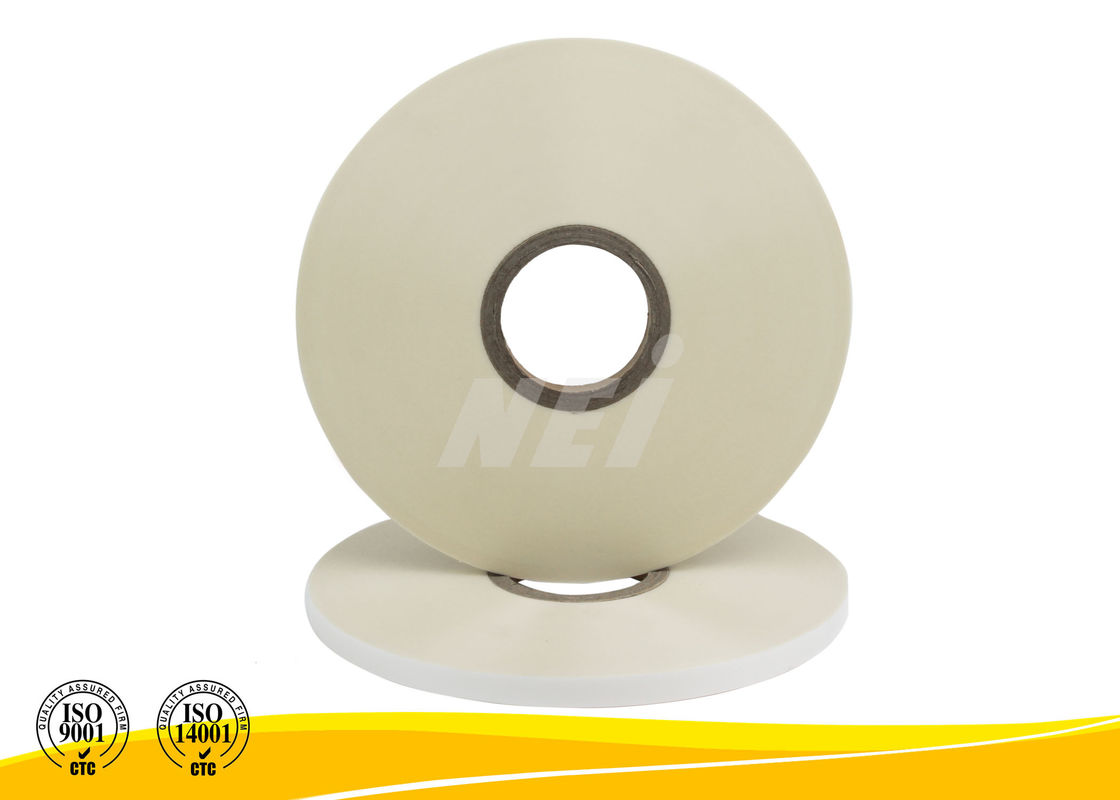

3 Inch Corner Tape Thermal Lamination Film 22 Micron 65 Micron 75 Micron

3 Inch Corner Tape Thermal Lamination Film 22 Micron 65 Micron 75 Micron

  • 3 Inch Corner Tape Thermal Lamination Film 22 Micron 65 Micron 75 Micron
  • 3 Inch Corner Tape Thermal Lamination Film 22 Micron 65 Micron 75 Micron
3 Inch Corner Tape Thermal Lamination Film 22 Micron 65 Micron 75 Micron
Product Details:
Place of Origin: Guangdong, China
Brand Name: NEi
Certification: SGS Test Report / ISO9001 / ISO14001
Model Number: ANGLE PASTING
Payment & Shipping Terms:
Minimum Order Quantity: 1 Ton / Trail Order Negotiable
Price: Negotiable
Packaging Details: 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film.
Delivery Time: 15 -20 working days for one 20GP Container
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Tons per month
Contact Now
Detailed Product Description
Product Name:: Angle Pasting Thermal Lamination Film Type:: Thermal Lamination Film
Place Of Origin:: Guangdong, China Material:: PET+EVA
Processing Type:: Multiple Extrusion Transparency:: Transparent
Application:: Lamination For Offset Printing Paper Core:: 3 Inch (1 Inch Available On Request)
Surface Finish:: Glossy
High Light:

Pasting Tape

,

Sticking Tape



3 Inch Corner Tape Thermal Lamination Film 22 Micron 65 Micron 75 Micron



Specifications:



TYPE THICKNESS (micron)
GLOSSY TOTAL BASE EVA
22 12 10
65 38 27
75 50 25
WIDTH (mm) 14mm, 19mm, 25mm (Width can be customized)
LENGTH (m) 300 ~ 4000
PAPER CORE 25.4mm(1 inch) / 76mm (3 inch)
BONDING ≤2
CORONA TREATED Double side
SURFACE TENSION 38 Dyne/cm ≤ 42 Dyne/cm
LAMINATION TEMP. 90 ± 10°C
ROLLER PRESSURE 10 ~ 20Mpa
LAMINATION SPEED 20 ~ 70M





Description:



PET Angle Pasting Thermal Lamination Film is designed for pasting angles of boxes. It is widely used with paper box angle making machines, and substitutes angle sticking paper tapes. Compared with paper tapes, this angle pasting film is waterproof and stronger adhesive. Therefore, paper boxes have longer useful lifetime.



3 Inch Corner Tape Thermal Lamination Film 22 Micron 65 Micron 75 Micron 0





Why chooses NEI PET angle pasting thermal lamination film corner tape?



1. High-temperature resistant, fast bonding, and less waste.



2. Waterproof and stronger adhesive.



3. Environmentally friendly: It is non-toxic, odorless, or non-benzene because non-solvent based adhesive is used. It is environmentally friendly and non-hazardous to human health since no toxic gases or volatile content is emitted during lamination process. In addition, it is easier to recycle than water-based lamination film because film and paper can be easily separated.



4. Safe operation: Non-solvent based adhesive is used so it will eliminate the fire hazard that is caused by the use and storage of flammable solvents.



5. Excellent performance: Compared with wet lamination, thermal lamination film enhances the color saturation and brightness of presswork. It also has stronger ability of absorbing powder and adhesive force. Furthermore, it is effective to prevent being blistered or separated from presswork in lamination process. As it has strong adhesive ability and surface tension, it can be used for latter processes, including spot UV, hot stamping, die cutting, indentation process.



6. Easy handling: Once the required temperature and pressure is met, lamination can be easily operated. No other special technique is required.



7. High efficiency: Production cost and labor cost are reduced substantially as there is no film wastage, mixture of adhesive solvent, or no UV heating lamp (drying system) is required. Therefore, it saves production space as well.



8. Wide adaptability: It is widely adaptable to different types of lamination machines, including wet and dry laminator. Only small adjustments need to be made to the machine if wet laminator is used.







Why chooses NEI?



1. NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.



2. 10 yeas of export experience to many countries, including South America, North America, Middle East, Asia, Africa, Oceania, etc. so we have good reputation in these areas.



3. Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.



4. Customize size and thickness according to customer requests. Labels can be customized as well.



5. Rapid production and delivery.



6. A wide range of thermal lamination film and special films.





Special Instruction:



1. NEI BOPP thermal lamination film is suggested to be laminated with the roller temperature range of 85 to 110°C and roller pressure of 10 to 20 Mpa. However, the optimum conditions are depending on the selected laminator’s speed and dimensional stability.



2. It is always used with corner making machines so width of corner tape can be customized.
