Home ProductsPET Thermal Lamination Film

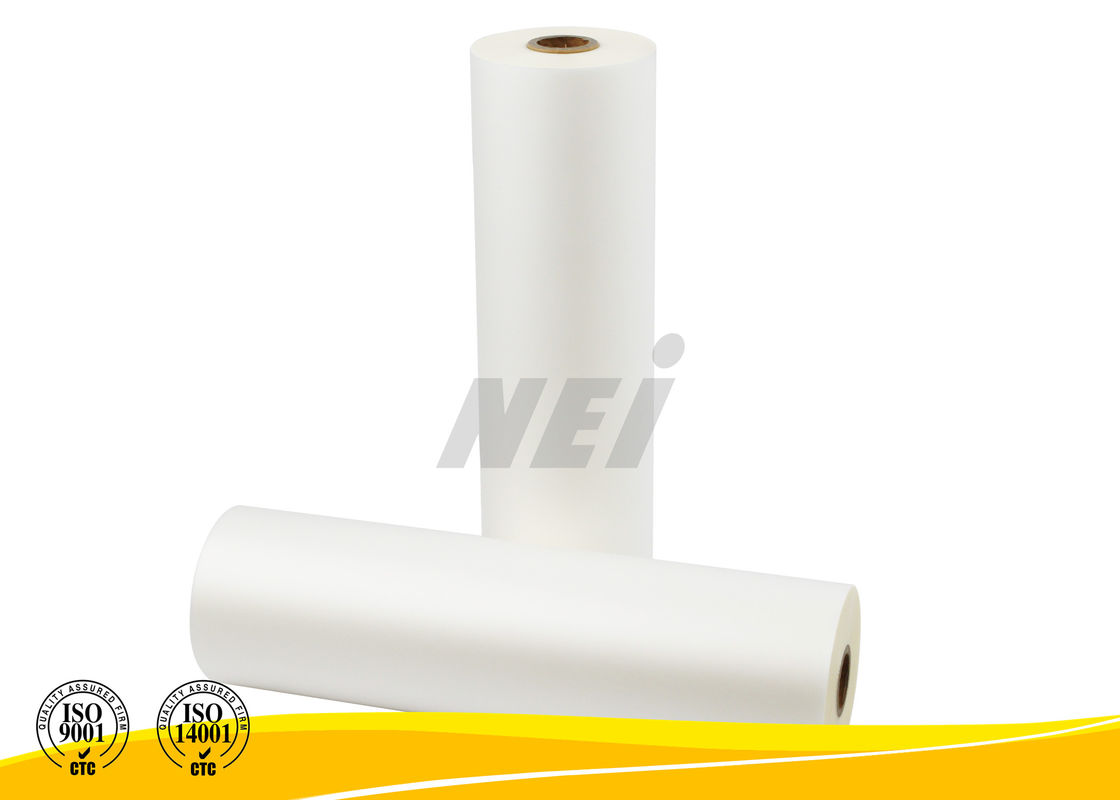

Polyester Pet Film Roll , Mylar Polyester Film Multiple Extrusion Processing Type

Polyester Pet Film Roll , Mylar Polyester Film Multiple Extrusion Processing Type

Polyester Pet Film Roll , Mylar Polyester Film Multiple Extrusion Processing Type

Product Details:

Place of Origin: Guangdong, China
Brand Name: NEi
Certification: SGS Test Report / ISO9001 / ISO14001
Model Number: PET

Payment & Shipping Terms:

Minimum Order Quantity: 1 Ton / Trail Order Negotiable
Price: Negotiable
Packaging Details: 1. Packed in paper cartons firstly and then secured on wooden pallets. 2. All pallets are well packed with packing belts and well wrapped with stretch film.
Delivery Time: 15 -20 working days for one 20GP Container
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Tons per month
Contact Now
Detailed Product Description
Product Name:: Glossy PET Thermal Lamination Film Type:: Thermal Lamination Film
Place Of Origin:: Guangdong, China Material:: PET+EVA
Processing Type:: Multiple Extrusion Transparency:: Transparent
Application:: Lamination For Digital Printing Paper Core:: 3 Inch (1 Inch Available On Request)
Surface Finish:: Glossy



Polyester Pet Film Roll , Mylar Polyester Film Multiple Extrusion Processing Type





Specifications:



TYPE

THICKNESS (micron)

GLOSSY

TOTAL

BASE

EVA

16

8

8

22

12

10

24

12

12

25

12

13

30

15

15

42

25

17

50

30

20

75

50

25

80

50

30

100

75

25

125

75

50

150

100

50

175

100

75

WIDTH (mm)

100 ~ 2220

LENGTH (m)

100 ~ 4000

PAPER CORE

25.4mm(1 inch) / 76mm (3 inch)

BONDING

≤2

CORONA TREATED

Double side

SURFACE TENSION

38 Dyne/cm ≤ 42 Dyne/cm

LAMINATION TEMP.

90 ± 10°C

ROLLER PRESSURE

10 ~ 20Mpa

LAMINATION SPEED

20 ~ 70M





Description:



Glossy PET Thermal Lamination Film has excellent clarity and processability on a wide range of machinery. Its surface has some certain level of scuff resistance and good stiffness, so it is widely for a variety of printed packaging and media, such as wine boxes, show trade display, photos and photo albums, etc. After lamination, the film surface is suitable for spot UV and screen printing.






Why chooses NEI PET thermal lamination film?



1. Environmentally friendly: It is non-toxic, odorless, or non-benzene because non-solvent based adhesive is used. It is environmentally friendly and non-hazardous to human health since no toxic gases or volatile content is emitted during lamination process. In addition, it is easier to recycle than water-based lamination film because film and paper can be easily separated.


2. Safe operation: Non-solvent based adhesive is used so it will eliminate the fire hazard that is caused by the use and storage of flammable solvents.


3. Excellent performance: Compared with wet lamination, thermal lamination film enhances the color saturation and brightness of presswork. It also has stronger ability of absorbing powder and adhesive force. Furthermore, it is effective to prevent being blistered or separated from presswork in lamination process. As it has strong adhesive ability and surface tension, it can be used for latter processes, including spot UV, hot stamping, die cutting, indentation process.


4. Easy handling: Once the required temperature and pressure is met, lamination can be easily operated. No other special technique is required.


5. High efficiency: Production cost and labor cost are reduced substantially as there is no film wastage, mixture of adhesive solvent, or no UV heating lamp (drying system) is required. Therefore, it saves production space as well.


6. Wide adaptability: It is widely adaptable to different types of lamination machines, including wet and dry laminator. Only small adjustments need to be made to the machine if wet laminator is used.






Why chooses NEI?



1. NEI has professional experience in film industry since 1995 so we have good quality control and after-sale services to support you.



2. 10 yeas of export experience to many countries, including South America, North America, Middle East, Asia, Africa, Oceania, etc. so we have good reputation in these areas.



3. Compared with other thermal lamination film, our EVA glue is 100% imported from Korea and it ensures the adhesiveness of our film.



4. Customize size and thickness according to customer requests. Labels can be customized as well.



5. Rapid production and delivery.



6. A wide range of thermal lamination film and special films.






Special Instruction:



1. NEI glossy PET thermal lamination film is suggested to be laminated with the roller temperature range of 85 to 110°C and roller pressure of 10 to 20 Mpa. However, the optimum conditions are depending on the selected laminator’s speed and dimensional stability.



2. It is advised that the printed surface is well dried before lamination and cools sufficiently one surface before laminating to other surface.
